Bushing & Coupling, Email sales@motiontek.ca  Price in Canadian Dollar

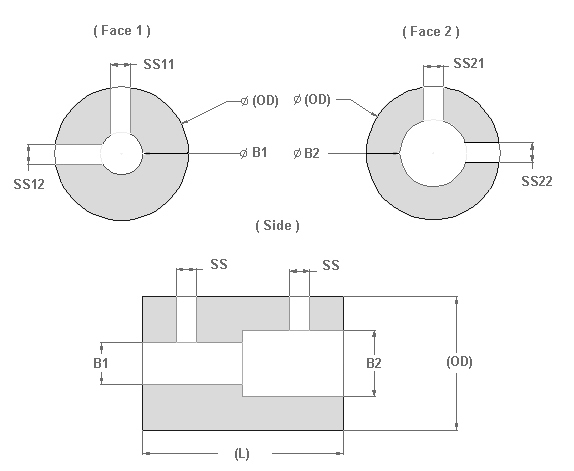

Model
Length (L) Outer
Diameter (OD)		 Bore 1  (B1) Bore 2 (B2) Set Screw
(SS)		 Price Buy it Now
mm Inch mm Inch mm Inch mm Inch
B320606 30 1.1811 20 0.7874 6.35 0.25 6.35 0.25 M3
$10.80
B320610 30 1.1811 20 0.7874 6.35 0.25 10 0.3937 M3 $10.80

B320810 30 1.1811 20 0.7874 8 0.3149 10 0.3937 M3 $10.80
B320912 30 1.1811 20 0.7874 9.525 0.375 12 0.4724 M3 $10.80
B431212 40 1.5748 30 1.1811 12.7 0.5 12.7 0.5 M4 $14.00
B431215 40 1.5748 30 1.1811 12.7 0.5 15 0.5905 M4 $13.80

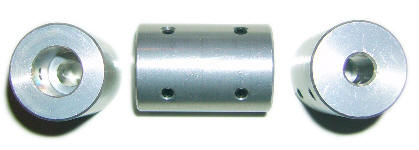

Bushing/Coupling used to connect shafts ball screw lead screw, it is used in automation and CNC machineries


All Shipping prices are setup for Canada & USA only, Europe, Australia & International
Please email us Item No, Quantity & Country Name to sales@motiontek.ca we have competitive shipping rates
