CNC KIT FOR ROUTER PLASMA LASER MILL Lathe RETROFIT KITS

CLICK FOR CNC KIT VIDEO

KIT#1 - KIT184XYZ $612.00
Fourth axis Add $175 (Driver, Motor, Larger power supply)

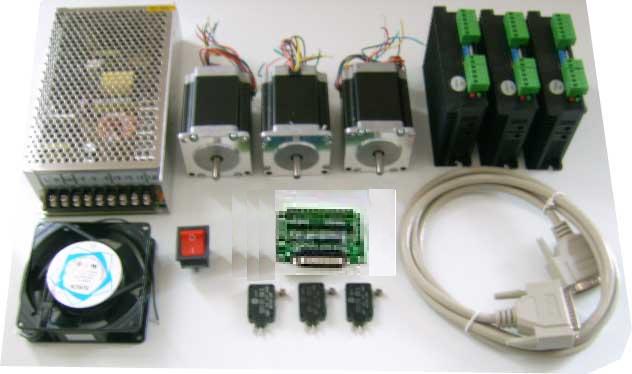

3 Axis CNC Kit for Small Router Mill Plasma & Laser

KIT184XYZ 4th Axis Add
Shipping  $39 $25

1) 3 NEMA23 Stepper Motors 3.0 AMP 184 oz/in, 1.8 degree, 8 Wires
2) 3 Micro Step Drivers high resolution, 4.2 AMP, 50VDC
3) Break out Board for 4 axis, 5 inputs & outputs bidirectional with Parallel cable
4) 3 Mechanical Home switches NO, NC
5) Power supply output 24VDC,8.5 AMP, Input 110/230VAC CE and/or cULus
6) Power Switch 16 AMP
7) FAN 9 x 9 inch
8) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
9) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
10) Wiring instructions
11) Available in Single & dual Shaft motors


What do I need more to build my CNC kit as complete controller





KIT#2 - KIT255XYZ $680.00
Fourth axis Add $144 (Driver, Motor)
 3 Axis CNC Kit for medium size Router Mill


KIT255XYZ

4th Axis Add

Shipping  $48

$25

1) 3 NEMA23 Stepper Motors 2.8 AMP 255 oz/in, 1.8 degree, 8 Wires
2) 3 Micro Step Drivers high resolution, 4.2 AMP, 50VDC
3) Break out Board for 6 axis, 5 inputs Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 24VDC,8.5 AMP, Input 110/ 230VAC CE and/or cULus
6) Power Switch 16 AMP
7) FAN 9 x 9 inch
8) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
9) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
10) Wiring instructions
11) Available in single & dual Shaft motors

What do I need more to build my CNC kit as complete controller



KIT#3 - KIT290XYZ $680.00
Fourth axis Add $144 (Driver, Motor)
 3 Axis CNC Kit for medium size Router Mill

KIT290XYZ

4th Axis Add

Shipping  $48

$25

1) 3 NEMA23 Stepper Motors 3.0 AMP 290 oz/in, 1.8 degree, 4 Wire bipolar
2) 3 Micro Step Drivers high resolution, 4.2 AMP, 50VDC
3) Break out Board for 6 axis, Isolated signal with Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 36VDC,10 AMP, Input 110/ 230VAC and/or cULus
6) Power Switch 16 AMP
7) FAN 9 x 9 inch
8) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
9) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
10) Wiring instructions
11) Available in dual Shaft motors

What do I need more to build my CNC kit as complete controller

KIT#4 -  KIT311XYZ $723.00
Fourth axis Add $148 (Driver, Motor)
 3 Axis CNC Kit for medium size Router Mill Plasma & Laser

KIT311XYZ

4th Axis Add

Shipping $48

$25

1) 3 NEMA23 Stepper Motors 4.0 AMP 311 oz/in, 1.8 degree, 8 Wires
2) 3 Micro Step Drivers High resolution 4.2 AMP, 50VDC
3) Break out Board for 4 axis, 5 inputs & outputs bidirectional with Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 36 VDC,10 AMP, Input 110/230VAC CE and/or cULus
6) Power Switch 16 AMP
7) Push button stop switch
8) FAN 9 x 9 inch
9) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
10) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
11) Wiring instructions

12) Available in Single & dual Shaft motors

What do I need more to build my CNC kit as complete controller

KIT#5 -  KIT438XYZ $795.00
Fourth axis Add $208 (Driver, Motor)
 3 Axis CNC Kit for medium size Router Mill

KIT438XYZ

4th Axis Add

Shipping $44

$12



1) 3 NEMA23 Stepper Motors 2.8 AMP 438 oz/in, 1.8 degree, 8 wires
2) 3 Micro Step Drivers High resolution 4.2 AMP, 50VDC
3) Break out Board for 6 axis, Isolated signal with Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 48VDC,7 AMP, 110/230VAC CE and/or cULus
6) Power Switch 16 AMP
7) FAN 9 x 9 inch
8) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
9)Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
10) Wiring instructions

11) Available in Single Shaft motors
What do I need more to build my CNC kit as complete controller

KIT#6 -  KIT438XYZP $850.00
Fourth axis Add $208 (Driver, Motor)
 3 Axis CNC Kit for Router Mill Plasma & Laser

KIT438XYZP

4th Axis Add

Shipping $49

$12

1) 3 NEMA23 Stepper Motors 2.8 AMP 438 oz/in, 1.8 degree, 8 wires
2) 3 Micro Step Drivers High resolution 4.2 AMP, 50VDC
3) Break out Board for 5 axis, 2 onboard relays 24V ~ 30 AC/DC, 2 Amp
    manual control input port, Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 48 VDC,7 AMP, 110/230VAC CE and/or cULus
6) Power Switch 16 AMP
7) FAN 9 x 9 inch
8) Power supply output 12 VDC,1.3 AMP, 90~264 VAC CE and/or cULus
9) Mach3 Software additional ( Buy Mach3 )
10)Wiring instructions & Free XML Config file.
11) Available in Single Shaft motors
Note the relays here is just to turn ON/OFF an AC/DC device it is not a THC
What do I need more to build my CNC kit as complete controller

KIT#7 -  KIT565XYZ $895.00
Fourth axis Add $234 (Driver, Motor)
 3 Axis CNC Kit for large size Router Mill

KIT565XYZ

4th Axis Add

Shipping $49

$15

1) 3 NEMA23 Stepper Motors 4.0 AMP 565 oz/in, 1.8 degree, 8 wires
2) 3 Micro Step Drivers High resolution 5.6 AMP, 50VDC
3) Break out Board for 4 axis, Isolated signal with Parallel cable
4) 3 Proximity Mechanical Switch NO, NC
5) Power supply output 36 VDC,10 AMP, 110/230VAC CE and/or cULus
6) Power Switch 16 AMP
8) Push button stop switch
9) FAN 9 x 9 inch
10) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
11) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
12) Wiring instructions

13) Available in Single & Dual Shaft motors
What do I need more to build my CNC kit as complete controller




KIT#8
-  KIT637XYZ $898.00
Fourth axis Add $228 (Large Driver & Motor)
3 Axis CNC Kit for Extra Large size Router Mill


KIT637XYZ

4th Axis Add

Shipping $59

$28

1) 2 NEMA34 Stepper Motors 4.2 AMP 637 oz/in, 1.8 degree, 8 Wires
    1 NEMA23 Stepper Motors 2.8 AMP 255 oz/in, 1.8 degree, 8 Wires
2) 2 Micro Step Drivers 5.6 AMP, 50VDC, Smooth motion High Speed
    1 Micro Step Drivers 4.2 AMP, 50VDC, Smooth motion High Speed
3) Break out Board for 4 axis, Isolated signal with Parallel cable
4) 3 Inductive proximity precision Switch for machine limit , NO
5) Power supply output 36VDC,10 AMP, Input 110/230VAC CE and/or cULus
6) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
7) Power Switch 16 AMP
8) FAN 9 x 9 inch
9) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
10) Wiring instructions
11) Available in Single & dual Shaft motors
What do I need more to build my CNC kit as complete controller





KIT#9 -  KIT1200XYZ  1550$
Fourth axis $512 (Driver, Motor, Power supply)
3 Axis CNC Kit for Large size Router Mill , Plasma & Laser

KIT1200XYZ

4th Axis Add

Shipping  $69

$22

1) 3 NEMA34 Stepper Motors 4.9 AMP 1179 oz/in, 1/2" Shaft
2) 3 Micro Step Drivers, 8 AMP, 80VDC, Smooth motion High Speed.
3) Break out Board for 4 axis, Isolated signal with Parallel cable
4) 3 Inductive proximity precision Switch for machine limit, NO
5) 3 Power supplies output 48VDC,7 AMP, Input 110/230VAC CE and/or cULus
6) Two Power Switch 30 AMP
7) Large size fan 12 x 12 inch
8) Push button stop switch
9) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
10) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
11) Wiring instructions
What do I need more to build my CNC kit as complete controller



KIT#10 -  KIT1700XYZ  $1625.00
Fourth axis $528 (Driver, Motor, Power supply)
3 Axis CNC Kit for Large size CNC Router Mill , Plasma & Laser

KIT1700XYZ

4th Axis Add

Shipping  $79

$25

1) 3 M1698 NEMA34 Stepper Motors 6.0 AMP 1698 oz/in, 1/2" Shaft
2) 3 Micro Step Drivers, 8 AMP, 80VDC, Smooth motion High Speed.
3) Break out Board for 4 axis, Isolated signal with Parallel cable
4) 3 Inductive metal proximity precision Switch for machine limit, NO
5) 3 Power supplies output 48VDC,7 AMP Input 110/230VAC CE and/or cULus
6) Power Switch 30 AMP
7) Large size fan 12 x 12 inch
8) Push button stop switch
9) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
10) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
11) Wiring instructions
What do I need more to build my CNC kit as complete controller

CLICK FOR CNC KIT VIDEO

KIT#11 -  KITAC2400XYZ  $1644.00 - Fourth axis $484
High Torque Motors 110VDC Driver directly powered by 110V AC power
3 Axis CNC Kit for Extra Large size CNC machine
3 Axis CNC Kit for Large size CNC Router , Bridge Port Milling Machines Large Plasma & Laser

KIT2400XYZ

4th Axis Add

Shipping $98

$30

1) 3 M2377 NEMA42 Stepper Motors 8.0 AMP 2377 oz/in, 0.748" Shaft
2) 3 Micro Step AC Stepper Drivers, 110VDC, 8 AMP, Powered with 110~230AC
    Motor RPM 1880 RPM at 1/4 Step
    Motor RPM 940 RPM at 1/8 Step
    Motor RPM 470 RPM at 1/16 Step
3) Break out Board for 4 axis, 5 inputs & outputs bidirectional with Parallel cable
4) 3 Inductive metal proximity precision Switch for machine limit, NO
5) Power Switch 30 Amp
6) Push button Stop switch
7) Large size fan 12 x 12 inch
9) Power supply output 5VDC, Input 85V ~ 264VAC CE and/or cULus
10) Relay to control AC/DC device like Spindle/Torch/Vacuum etc
      2 Separate Relay option AC solid state &  AC/DC Mechanical Relay
11) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
11) Wiring instructions
What do I need more to build my CNC kit as complete controller

All above kits they have 45 days support by email from the date the order received

More on CNC KIT Related software and options
Contact us Add Plasma Torch Control ON/OFF
Contact us Add Spindle Control ON/OFF
Contact us Add Laser Control ON/OFF
Contact us Add 4th Axis
Contact us Add Stepper Motor cables
Contact us Turn Key Control Box for CNC Router
Contact us Turn Key Control Box for CNC Plasma
Contact us Turn Key Control Box for CNC Laser
Contact us Add Plasma Torch Height Control THC
Contact us Programming Special automation machine
Contact us Stand alone controller  $995 US




CLICK ON THE SCREEN BELOW TO WATCH A CNC KIT VIDEO
CNC KIT637XYZ
3 Axis Stepper motor kit

CNC KIT311XYZ
3 Axis Stepper motor kit

Stepper Motor M2377 and AC Stepper drive D110
110V ~ 220V AC Input power
High performance step motor 2377 oz/in, High torque, High speed




Click to read the Safety Statement

What do I need more to build my CNC controller

1- Electronic enclosure ABS, Aluminum or Metal structure as you prefer
2- Aluminum 22, 18 or 14 AWG wires for internal DC wiring base on the
    amperage and voltage being held in that connection
3- Aluminum 8 Wires 18, 16 or 14 AWG shielded Stepper motor cable
4- You might add stepper motor cable connectors for more flexibility
5-
Mach3 CNC Router, Plasma and Mill controller Click here to buy

6- Instructions and wiring diagram provided with each CNC KIT
7- Mach3 Setup, Mach3 has to be bought from us to have this option

What do I need more to build my CNC controller
