AC DC SERVO CNC RETROFIT KITS ROUTER PLASMA LASER MILL Bridge port LATHE

AC DC SERVO CNC RETROFIT KITS ROUTER PLASMA LASER MILL LATHE
CLICK FOR CNC KIT VIDEO Price in Canadian Dollar

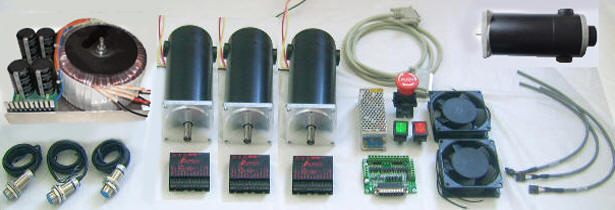

KITDCS1100XYZ 72VDC
3 Axis DC Servo CNC Kit  $1985.00 CA Shipping USA/CANADA $89
CNC Kit for Router, Mill, Laser, Mill, Lathe & Plasma
Delivery 1 ~ 2 business days  available in Stock

1) 3 Pieces SM341100E500S NEMA34 Servo Motors, 1100 oz/in peak torque, 2500 RPM
    each with 500 or 1000 CPR single ended 3 channels encoder & 1 feet cable with latching connector
2) 3 Pieces Viper95 drivers 95V 12 AMP continuous, 22 Amp Peak current, 2,4,8 step multiplier, 32 bit PID control
    with 16 bit RISC processor, Fault output signals, 3 configurations setup, Opto isolated Step and Direction inputs
    Setting & tuning are programmable by RS232 port
3) Break out Board for 5 axis, manual pulse connector, 2 onboard relays for activating AC/DC device like spindle
    coolant, plasma, laser etc, charge pump, stop switch, Opto Isolated, 5 input signals & Parallel cable
4) 3 Pieces Inductive proximity metal switches NO type
5) 1 Pieces power supplies output 72VDC 20 AMP, Input 110V/220VAC
6) Power supply output 12VDC 110VAC & 220VAC CE Compliance
9) 1 Pieces heavy duty Power Switches 30 AMP 380V load
10) Emergency Push Button Switch
11) 1 Pieces large fan 110VAC or 220VAC
12) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
13) Wiring instructions

14) Change to deferential encoder 1250 CPR add $105
CLICK FOR CNC KIT VIDEO Price in Canadian Dollar

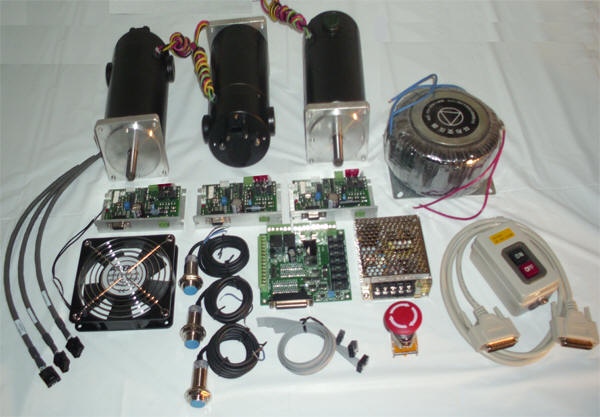

KITDCS840XYZ 72VDC In Stock
3 Axis DC Servo CNC Kit  $1955.00 CA Shipping USA/CANADA $89
CNC Kit for Router, Mill, Laser, Mill, Lathe & Plasma
Delivery 1 ~ 2 business days currently not available in Stock

1) 3 Pieces SM34840E500S NEMA34 Servo Motors, 840 oz/in peak torque, 2500 RPM
    each with 500 or 1000 CPR single ended 3 channels encoder & 1 feet cable with latching connector
2) 3 Pieces Viper95 drivers 95V 12 AMP continuous, 22 Amp Peak current, 2,4,8 step multiplier, 32 bit PID control
    with 16 bit RISC processor, Fault output signals, 3 configurations setup, Opto isolated Step and Direction inputs
    Setting & tuning are programmable by RS232 port
3) Break out Board for 5 axis, manual pulse connector, 2 onboard relays for activating AC/DC device like spindle
    coolant, plasma, laser etc, charge pump, stop switch, Opto Isolated, 5 input signals & Parallel cable
4) 3 Pieces Inductive proximity metal switches NO type
5) 1 Pieces power supplies output 72VDC 20 AMP, Input 110V/220VAC
6) Power supply output 12VDC 110VAC & 220VAC CE Compliance
9) 1 Pieces heavy duty Power Switches 30 AMP 380V laod
10) Emergency Push Button Switch
11) 1 Pieces large fan 110VAC or 220VAC
12) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
13) Wiring instructions

14) Change to deferential encoder 1250 CPR add $105

What do I need more to build my CNC kit as complete controller

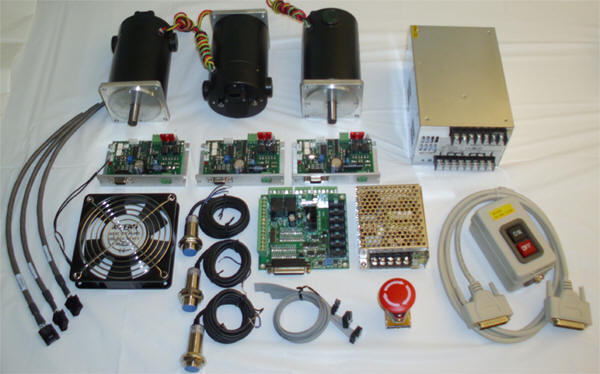

KITDCS580XYZ 48VDC
3 Axis DC Servo CNC Kit $1695.00 CA Shipping USA/CANADA $79
CNC Kit for Router, Mill, Laser, Lathe & Plasma
Delivery 1 ~ 2 business days  available in Stock

1) 3 Pieces SM34580E500S NEMA34 Servo Motors, 580 oz/in peak torque, 2500 RPM
    each with 500 or 1000 CPR single ended 3 channels encoder & 1 feet cable with latching connector
2) 3 Pieces Viper95 drivers 95V 12 AMP continuous, 22 Amp Peak current, 2,4,8 step multiplier, 32 bit PID control
    with 16 bit RISC processor, Fault output signals, 3 configurations setup, Opto isolated Step and Direction inputs
    Setting & tuning are programmable by RS232 port
3) Break out Board for 5 axis, manual pulse connector, 2 onboard relays for activating AC/DC device like spindle
    coolant, plasma, laser etc, charge pump, stop switch, Opto Isolated, 5 input signals & Parallel cable
4) 3 Pieces Inductive proximity metal switches NO type
5) 1 Pieces power supplies output 48VDC 10 AMP, Input 110V/220VAC CE Compliance
6) Power supply output 12VDC 110VAC & 220VAC CE Compliance
9) 1 Pieces heavy duty Power Switches 30 AMP 380V laod
10) Emergency Push Button Switch
11) 1 Pieces large fan 110VAC or 220VAC
12) Mach3 Software additional ( Buy Mach3 ) Free Mach3 setup documentation
13) Wiring instructions

14) Change to deferential encoder 1250 CPR add $105


What do I need more to build my CNC kit as complete controller
More on CNC KIT Related software and options
Contact us
Add 4th Axis
Turn Key Control Box for CNC Router
Turn Key Control Box for CNC Laser
Turn Key Control Box for CNC Plasma
Add Torch Height Control for Plasma
Programming Special Automation machine by PLC or PC
That includes any automation machine base on 1, 2 , 3 or up to 6 axis CNC machine with multiple input and output control device, Stepper & Servo motor controller



We provide on site service to retrofit CNC router, Plasma, Laser, Mill or other automation application


CLICK ON THE SCREEN BELOW TO WATCH A CNC KIT VIDEO


Read the Safety Statement

What do I need more to build my CNC controller
1- Electronic enclosure ABS, Aluminum or Metal structure as you prefer
2- Aluminum 22, 18 or 14 AWG wires for internal DC wiring base on the
    amperage and voltage being held in that connection
3- Aluminum 8 Wires 18, 16 or 14 AWG shielded Stepper motor cable
4- You might add stepper motor cable connectors for more flexibility
5- Mach3 CNC Router, Plasma and Mill controller Click here to buy
6- Instructions and wiring diagram provided with each CNC KIT
7- Mach3 Setup, Mach3 has to be bought from us to have this option

What do I need more to build my CNC controller

Shipping price for Canada & USA only, Europe, Australia & International Email us Item No, Quantity & Country Name
to sales@motiontek.ca for shipping rates
