TORCH HEIGHT CONTROL FOR PLASMA & OXY-FUEL CNC MACHINES

CLICK FOR THC VIDEO Price in Canadian Dollar
Download THCSAC200.pdf

Stand alone Plasma Oxy-Fuel Torch height control
Delivery 1 ~ 2 business days
available in Stock


Features

1) Stand alone controller for THC & OHC completely independent from CNC computer software or CNC control system
2) closed-loop control system, DC motor driven with pulse width modulation
3) Signal processed at 4 stages Position Signal Sensing, Signal Process, Logic Control and Motor Drive
4) Analog signal processed by stand alone controller circuit to Logic Control circuit and then Motor Driver circuit
5) Sensing signal generated by capacitive sensor
6) Insulated Sensor ring which is sense the height between torch and metal working piece
7)
Circuit-broken protection on Auto Mode torch will lift up automatically in case HF cable disconnected, open circuit, short
    circuit rotecting the torch from diving into the work peice
8) Enclosure designed for waterproof, dustproof, shock proof.
9) Circuit-protection design greatly improved the ability of anti-jamming, voltage surge,  harmonic wave, pressure sensitive
    circuit protection,  over voltage protection, self-recovery circuit
10) External user height setting & internal adjustable resistor for over height

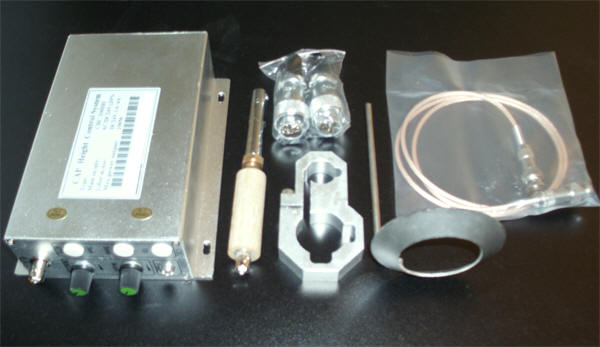

11) Hook up fixture, insulated ring sensor handle, ring sensor, HF cable & connectors
12) Works with both CNC Plasma & OXY-Fuel machines

Specification

1) Power Supply AC24V+10%50Hz/60H z
2) Motor driving output current
1A-4A
3) Working temperature 10 ~ 60

4)
High frequency coaxial-cable-10 ~ 200
5) Height accuracy
0.2mm
6) Adjustment range within accuracy from the surface of the working piece 1mm ~20mm
7) Max output power 100W
8) Length of HF-cable 200mm ~ 1000m max
9) controller dimension Length x Width x Height 200mm x 104mm x 50mm

Options
1) DC motor
2) Proximity limit switch
3) Complete Mechanical Z axis with gearbox
4) Power supply output AC 24V, input 110/220V with CSA or CE compliance
5) Ready to plug in including Pre-wiring, motor, power supply, 2 proximity switches (All electronics)
6) Ready to go plug in and install on your CNC machine, including (All electronics section 5 & Z axis mechanics & gearbox)


CLICK ON THE SCREEN BELOW TO WATCH A CNC PLASMA VIDEO WITH THE THC


Read the Safety Statement

Shipping price for Canada & USA only, Europe, Australia & International Email us Item No, Quantity & Country Name
