Linear Guide Rail Round & Bearing/Pillow Block

Length up to  157 inch or 4000mm
End machining available for mounting rail end to end for over 157", Custom length available
Item# Shaft Diameter mm/Inch Length mm / Inch Rail Price
LRR16-200 16mm / 5/8" 200mm / 7.87" $32.00
LRR16-300 16mm / 5/8" 300mm / 11.81" $37.00
LRR16-400 16mm / 5/8" 400mm / 15.74" $49.00
LRR16-500 16mm / 5/8" 500mm / 19.68" $61.00
LRR16-600 16mm / 5/8" 600mm / 23.62" $73.00
LRR16-800 16mm / 5/8" 800mm / 31.49" $98.00
LRR16-1100 16mm / 5/8" 1100mm / 43.30" $133.00

LRR16-1400 16mm / 5/8" 1400mm / 55.11" $157.00
LRR16-1500 16mm / 5/8" 1500mm / 59.05" $169.00
LRR16-1800 16mm / 5/8" 1800mm / 70.86" $205.00
LRR20-300
20mm / 0.78" 300mm / 11.81" $46.00
LRR20-400
20mm / 0.78" 400mm / 15.74" $58.00
LRR20-1500 20mm / 0.78" 1500mm/ 59.05" $199.00
LRR20-1800 20mm / 0.78" 1800mm / 70.86" $239.00

LRR20-2000 20mm / 0.78" 2000mm / 78.74" $268.00

LRR20-2200 20mm / 0.78" 2200mm / 86.61" $295.00
LRR20-2600 20mm / 0.78" 2600mm / 102.36" $339.00
LRR20-2800 20mm / 0.78" 2800mm / 110.23" $369.00
LRR20-3300 20mm / 0.78" 3300mm / 129.29" $438.00
LRR20-4000 20mm / 0.78" 4000mm / 157.48" $548.00

LRR25-4000
25mm / 1" 4000mm / 157.48" $638.00
MODEL NO. SHAFT
Diameter
MAIN DIMENSIONS MOUNTING DIMENSION WEIGHT (kg)
H E W L F T K J h1 θ B N M x P S1 S2

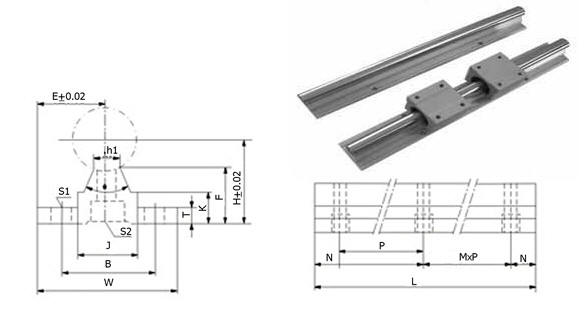

LRR10 10 18 16 32 200 13.5 4 8.9 12.4 4.7 80 22 50 1x150 4.5 M4 1.5/1000mm
LRR12 12 20.46 17 34 200 15 4.5 9.8 15 6 80 25 50 1x150 4.5 M4 1.7/1000mm
LRR16 16 25 20 40 200 17.8 5 11.7 18.5 8 80 30 25 1x150 5.5 M5 2.3/1000mm
LRR20 20 27 22.5 45 200 17.7 5 10 19 8 50 30 25 1x150 5.5 M6 2.8/1000mm
LRR25 25 33 27.5 55 200 21 6 12 21.5 8 50 35 25 1x150 6.5 M6 3.0/1000mm
LRR30 30 37 30 60 200 22.8 7 13 26.5 10.3 50 40 25 1x150 6.5 M8 3.2/1000mm
LRR35 35 43 32.5 65 200 26.5 8 15.5 28 13 50 45 25 1x150 9 M8 4.0/1000mm
LRR40 40 48 37.5 75 200 29.4 9 17 38 15.5 50 55 25 1x150 9 M8 4.5/1000mm
LRR50 50 62 47.5 95 200 38.8 11 21 45 20 50 70 25 1x150 11 M10 5.0/1000mm
For Items length 2000mm & higher Shipping base on location will be calculated after purchase
Please contact us for any question
Item# Bearing
Type
Bearing & Block Bearing diameter
 mm/Inch
Block/Bearing price
LRB10 Single

 Open Block Single Bearing


Open Block Double Bearing

10mm / 0.393" $32.00
LRB16 Single 16mm / 0.629" $34.00
LRBL16 Double 16mm / 0.629" $65.00

LRB20 Single 20mm / 0.787" $37.00
LRBL20 Double 20mm / 0.787" $69.00
LRB25 Single 25mm / 0.984" $56.00

LRB30

Single 30mm / 1.181" $64.00


LMO16

   Open Type Bearing

16mm / 0.629" $18.00

LMO20

  20mm / 0.787" $20.00
LMC16

  Close Type Bearing
16mm / 0.629" $18.00

LMC20

  20mm / 0.787" $20.00


Item# Shaft
Diameter
MAIN DIMENSIONS MOUNTING DIMENSIONS BASIC LOAD RATING WEIGHT
(kg)
B C S l c (kgf) Co (kgf)
h E W L F T h1 θ

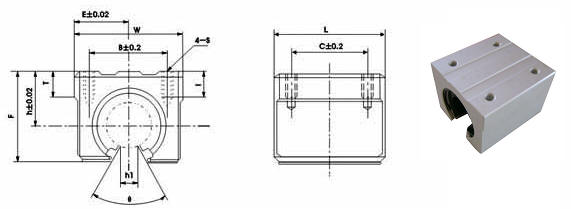

LRB10 10 15 18 36 32 24 7 6 80 25 20 M5 10 28

42

0.065
LRB12 12 17 20 40 39 27.6 8 8.5 80 28 26 M5 10

31

45

0.100
LRB16 16 20 22.5 45 45 33 9 10 80 32 30 M5 12

44

68

0.150
LRB20 20 23 24 48 50 39 11 10 60 35 35 M6 12

66

105

0.200
LRB25 25 27 30 60 65 47 14 11.5 50 40 40 M6 12

75

120

0.45
LRB30 30 33 35 70 70 56 15 14 50 50 50 M8 18

120

210

0.63
LRB35 35 37 40 80 80 63 18 16 50 55 55 M8 18

127

240

0.92
LRB40 40 42 45 90 90 72 20 19 50 65 65 M10 20

165

307

1.33
LRB50 50 53 60 120 110 92 25 23 50 94 80 M10 20

292

607

3.00

  Linear Guide or linear rail used in precision linear movement, it is used in automation and CNC machineries
Precision Garage door, Sliding door


We ship to Canada, USA, Europe, Australia, France, UK, Italy & International
Please email us Country Name & Contact information to sales@motiontek.ca
we have competitive international shipping rates
