CNC Custom Machines |
||
Custom CNC Machines 1,2,3,4 or 5 Axis With Rotary axis Dual Z axis etc... |
||
CNC Machine with 25" Z axis Fully
made from Precision Extrusion Custom made for Ultra sound scanner 5'x10'x25" XYZ working area |
||
![]() |
||
Machine front Design | ||
![]() |
||
CNC Plasma 6' x 12' x 8" XYZ with Torch Height Control and Movable Table | ||
![]() |
||

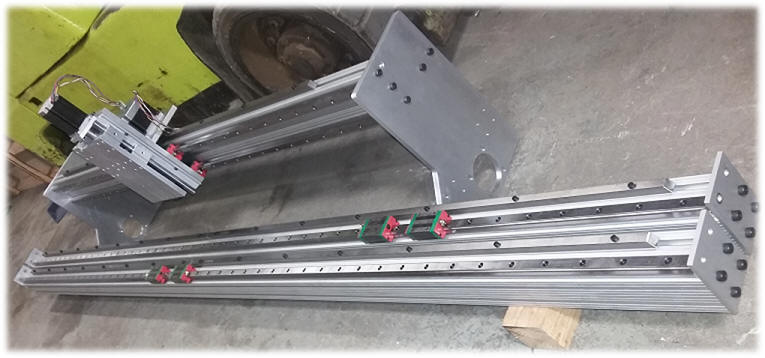

Machine Gantry and Sides | ||
![]() |
||
Machine Operation Software | ||
![]() |
||

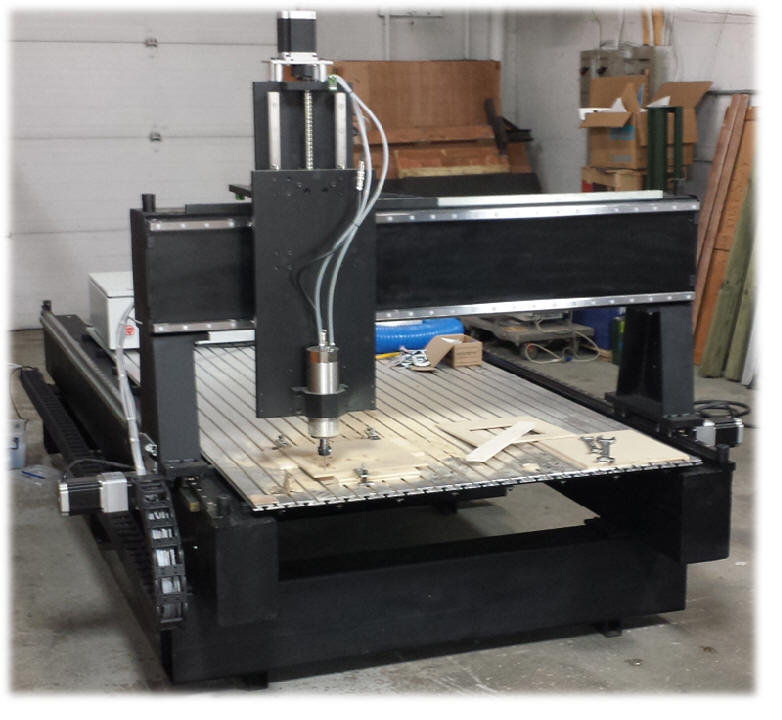

CNC MILL 4' x 8' x 10" XYZ for Aluminum and Hard Wood Milling | ||
![]() |
||

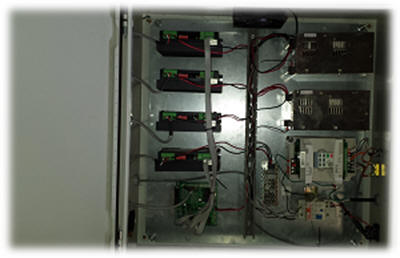

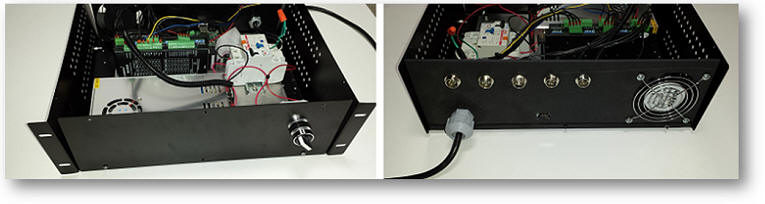

Machine Control Box | ||
![]() |
||

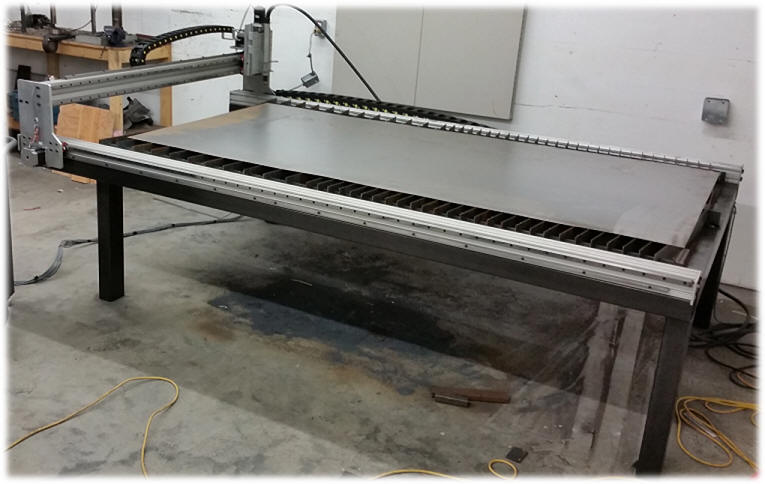

CNC Machine with
6" Z axis and Static
Torch Height control Water Table is Custom made by customer 5'x10'x6" XYZ working area |
||
![]() |
||
Click for Video below for the Machine in Action | ||
CNC Machine with 8" Z axis and Static
Torch Height control Table is Custom made by customer 5'x10'x8" XYZ working area |
||
![]() |
||
Machine Gantry and Sides | ||
![]() |
||
CNC Glue Head Machine Ethernet Controller 2 Axis 4'x4' XY Belt drive 800 IMP travel Speed |
||
![]() |
||
CNC Glue Head Machine Ethernet Controller | ||
![]() |
||

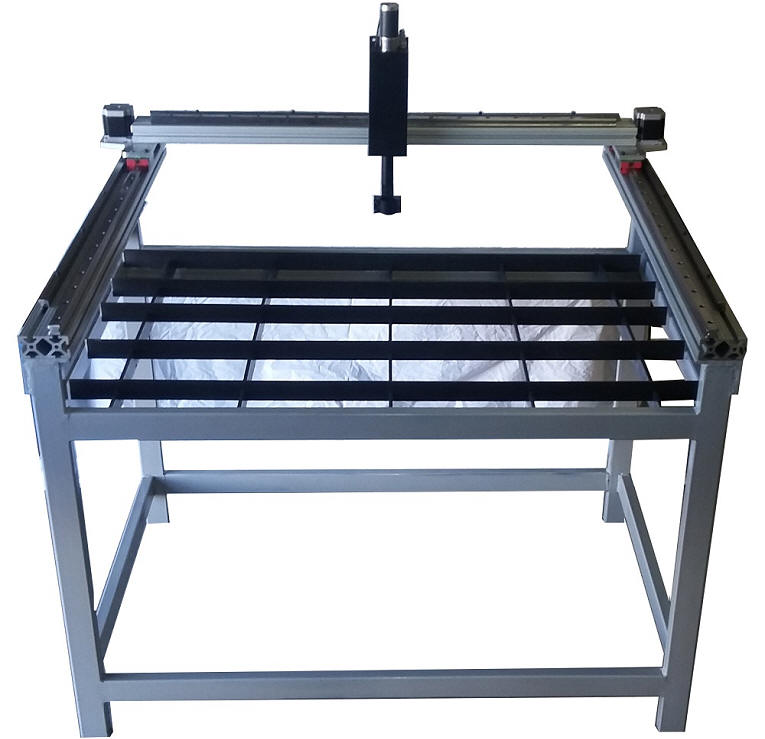

CNC Plasma 3'x2'x4" XYZ with light Gantry Strong enough to run 5'x10' XYZ CNC Plasma Machine | ||
![]() |
||

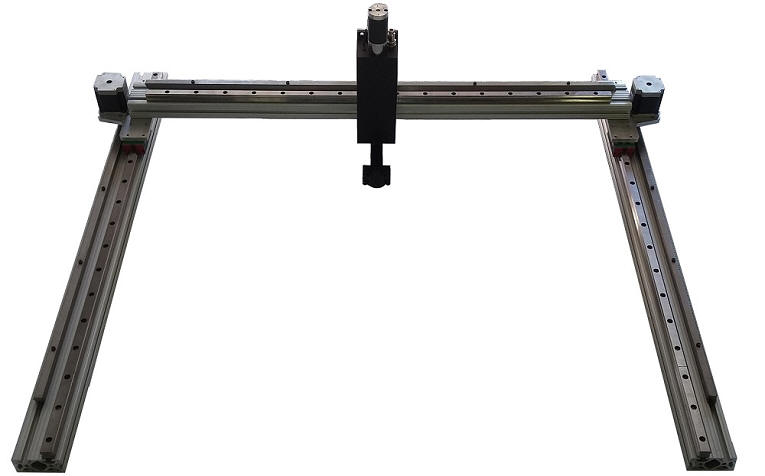

CNC Plasma 3'x2'x4" XYZ Light Gantry without Table | ||
![]() |
||

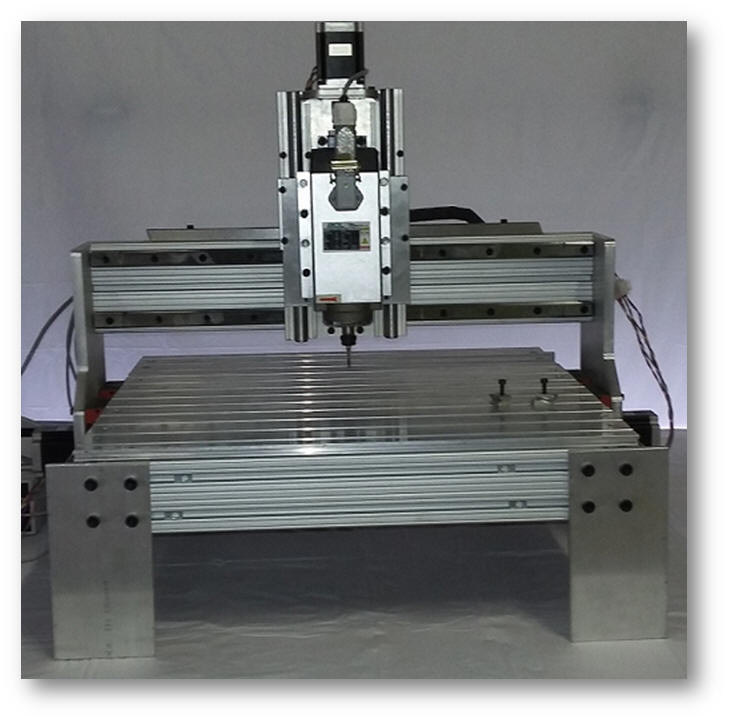

CNC Router Descktop Engraver 2'x2'x4" XYZ with Medum size strong Gantry | ||
![]() |
||
Click for Video below for the CNC Router Descktop Engraver | ||
