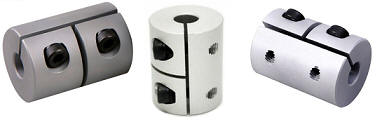

Clamp Coupling
For CNC Machine Stepper motor Ball screw
| Model | |||||||||||
| Length (L) |
Outer
Diameter (OD) |
Bore 1 (B1) | Bore 2 (B2) |
Set
Screw (SS) |
Price | Buy it Now | |||||
| mm | Inch | mm | Inch | mm | Inch | mm | Inch | ||||
| CC220606 | 20 | 0.7874 | 20 | 0.7874 | 6.35 | 0.25 | 6.35 | 0.25 | M3 | $19.95 | |
| CC330610 | 25 | 0.9842 | 25 | 0.9842 | 6.35 | 0.25 | 10 | 0.3937 | M3 | $20.95 | |
| CC330912 | 32 | 1.2598 | 32 | 1.2598 | 9.525 | 0.375 | 12 | 0.4724 | M4 | $21.95 | |
| CC331212 | 32 | 1.2598 | 32 | 1.2598 | 12.7 | 0.5 | 12 | 0.4724 | M4 | $21.95 | |
| CC331215 | 32 | 1.2598 | 32 | 1.2598 | 12.7 | 0.5 | 15 | 0.5905 | M4 | $21.95 | |
 |
|
|
