Spindle Bit Collets
CNC Router MILL Collets
|
Collets |
Bit Shank dia. / Inch - mm | Price | Buy it now |
| ER16 | 1/8 - 3 ~ 3.175 |
$9.95 |
|
| ER16 | 1/4 - 6 ~ 6.35 |
$9.95 |
|
| ER20 | 1/8 - 3 ~ 3.175 | $11.95 | |
| ER20 | 1/4 - 6 ~ 6.35 | $11.95 | |
| ER25 | 1/8 - 3 ~ 3.175 | $13.95 | |
| ER25 | 1/4 - 6 ~ 6.35 | $13.95 | |
| ER25 | 1/2 - 12 ~ 12.7 | $13.95 | |

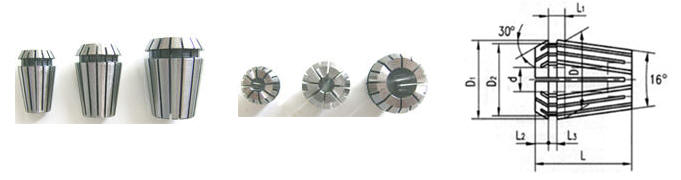

| Model | d H7 | D | D 1 | D 2 | L | L 1 | L 2 | L 3 | Collapse |
| ER11 | ≥1.0～7.0 | 11 | 11.5 | 9.5 | 18.0 | 3.8 | 2.5 | 2.0 | 0.5 |
| ER16 | ≥1.0～2.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 0.5 |
| ≥2.0～10.0 | 16 | 17 | 13.8 | 27.5 | 6.26 | 4.0 | 2.7 | 1.0 | |
| ER20 | ≥1.0～2.5 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 0.5 |
| ≥2.5～13.0 | 20 | 21 | 17.4 | 31.5 | 6.36 | 4.8 | 2.8 | 1.0 | |
| ER25 | ≥1.0～2.5 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 0.5 |
| ≥2.5～16.0 | 25 | 26 | 22.0 | 34.0 | 6.66 | 5.0 | 3.1 | 1.0 | |
| ER32 | ≥2.0～3.5 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 0.5 |
| ≥3.5～20.0 | 32 | 33 | 29.2 | 40.0 | 7.16 | 5.5 | 3.6 | 1.0 | |
| ER40 | ≥3.0～26.0 | 40 | 41 | 36.2 | 46.0 | 7.66 | 7.0 | 4.1 | 1.0 |
| ER50 | ≥6.0～10.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 1.0 |
| ≥10.0～34.0 | 50 | 52 | 46.0 | 60.0 | 12.6 | 8.5 | 5.5 | 2.0 |
