Linear Guide Round Rail Bearing Pillow/Block
CNC Machines Guiding Rail, available Length 157" 4000mm
Item#
Shaft Diameter mm/Inch
Length mm / Inch
Rail Price
LRR16-200
16mm / 5/8"
200mm / 7.87"
$22.00
LRR16-300
16mm / 5/8"
300mm / 11.81"
$25.00
LRR16-400
16mm / 5/8"
400mm / 15.74"
$33.00
LRR16-500
16mm / 5/8"
500mm / 19.68"
$41.00
LRR16-600
16mm / 5/8"
600mm / 23.62"
$48.00
LRR16-800
16mm / 5/8"
800mm / 31.49"
$65.00
LRR16-1100
16mm / 5/8"
1100mm / 43.30
"
$88.00
LRR16-1400
16mm / 5/8"
1400mm / 55.11"
$103.00
LRR16-1500
16mm / 5/8"
1500mm / 59.05"
$112.00
LRR16-1800
16mm / 5/8"
1800mm / 70.86"
$135.00
LRR20-300
20mm / 0.78"
300mm / 11.81"
$31.00
LRR20-400
20mm / 0.78"
400mm / 15.74
"
$38.00
LRR20-1500
20mm / 0.78"
1500mm/ 59.05"
$131.00
LRR20-1800
20mm / 0.78"
1800mm / 70.86"
$176.00
LRR20-2000
20mm / 0.78"
2000mm / 78.74"
$212.00
LRR20-2200
20mm / 0.78"
2200mm / 86.61"
$234.00
LRR20-2600
20mm / 0.78"
2600mm / 102.36"
$320.00
LRR20-2800
20mm / 0.78"
2800mm / 110.23"
$345.00
LRR20-3300
20mm / 0.78"
3300mm / 129.29"
$393.00
LRR20-4000
20mm / 0.78"
4000mm / 157.48"
$493.00
LRR25-4000
25mm / 1"
4000mm / 157.48"
$573.00

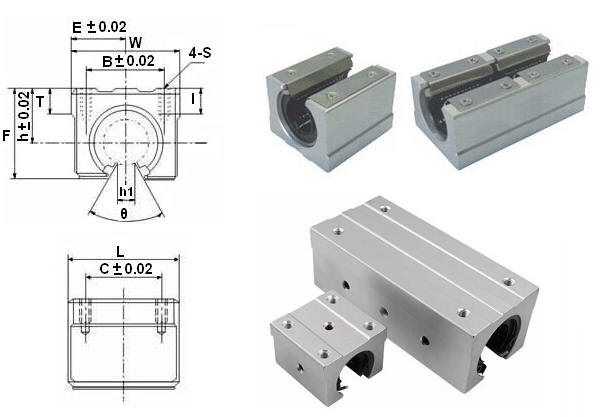

MODEL NO.
Dia
MAIN DIMENSIONS
MOUNTING DIMENSION
WEIGHT
Kg /
H
E
W
L
F
T
K
J
h1
θ
B
N
M x P
S1
S2
m
eter
LRR10
10
18.00
16.00
32
200
13.50
4.00
8.90
12.40
4.70
80
22
50
1x150
4.50
M4
1.50
LRR12
12
20.46
17.00
34
200
15.00
4.50
9.80
15.00
6.00
80
25
50
1x150
4.50
M4
1.70
LRR16
16
25.00
20.00
40
200
17.80
5.00
11.70
18.50
8.00
80
30
25
1x150
5.50
M5
2.30
LRR20
20
27.00
22.50
45
200
17.70
5.00
10.00
19.00
8.00
50
30
25
1x150
5.50
M6
2.80
LRR25
25
33.00
27.50
55
200
21.00
6.00
12.00
21.50
8.00
50
35
25
1x150
6.50
M6
3.00
LRR30
30
37.00
30.00
60
200
22.80
7.00
13.00
26.50
10.30
50
40
25
1x150
6.50
M8
3.20
LRR35
35
43.00
32.50
65
200
26.50
8.00
15.50
28.00
13.00
50
45
25
1x150
9.00
M8
4.00
LRR40
40
48.00
37.50
75
200
29.40
9.00
17.00
38.00
15.50
50
55
25
1x150
9.00
M8
4.50
LRR50
50
62.00
47.50
95
200
38.80
11.00
21.00
45.00
20.00
50
70
25
1x150
11.00
M10
5.00
For Items length 2000mm & higher Shipping base on location will be calculated after
purchase Please contact us for any question
Item#
Bearing
Type
Bearing & Block
Bearing diameter
mm/Inch
Block/Bearing price
LRB10
Single
Open Block
Single Bearing
Open Block
Double Bearing
10mm / 0.393"
$20.00
LRB16
Single
16mm / 0.629"
$23.00
LRBL16
Double
16mm / 0.629"
$43.00
LRB20
Single
20mm / 0.787"
$25.00
LRBL20
Double
20mm / 0.787"
$46.00
LRB25
Single
25mm / 0.984"
$37.00
LRB30
Single
30mm / 1.181"
$43.00
LMO16
Open Type
Bearing
16mm / 0.629"
$12.00
LMO20
20mm / 0.787"
$14.00
LMC16
Close Type
Bearing
16mm / 0.629"
$12.00
LMC20
20mm / 0.787"
$14.00
Item#
Dia
MAIN DIMENSIONS
MOUNTING DIMENSIONS
BASIC LOAD RATING
WEIGHT
B
C
S
l
c (kgf)
Co (kgf)
(kg)
h
E
W
L
F
T
h1
θ
LRB10
10
15
18
36
32
24
7
6
80
25
20
M5
10
28
42
0.07
LRB12
12
17
20
40
39
27.6
8
8.5
80
28
26
M5
10
31
45
0.10
LRB16
16
20
22.5
45
45
33
9
10
80
32
30
M5
12
44
68
0.15
LRB20
20
23
24
48
50
39
11
10
60
35
35
M6
12
66
105
0.20
LRB25
25
27
30
60
65
47
14
11.5
50
40
40
M6
12
75
120
0.45
LRB30
30
33
35
70
70
56
15
14
50
50
50
M8
18
120
210
0.63
LRB35
35
37
40
80
80
63
18
16
50
55
55
M8
18
127
240
0.92
LRB40
40
42
45
90
90
72
20
19
50
65
65
M10
20
165
307
1.33
LRB50
50
53
60
120
110
92
25
23
50
94
80
M10
20
292
607
3.00
LRBL16
16
20
22.5
45
85
33
9
10
80
32
60
M5
12
91
139
0.30
LRBL20
20
23
24
48
96
39
11
10
60
35
70
M6
12
104
162
0.40
LRBL25
25
27
30
60
130
47
14
11.5
50
40
100
M6
12
115
184
0.90
LRBL30
30
33
35
70
140
56
15
14
50
50
110
M8
18
185
324
1.26
LRBL40
40
42
45
90
175
72
20
19
50
65
140
M10
20
155
475
2.60
