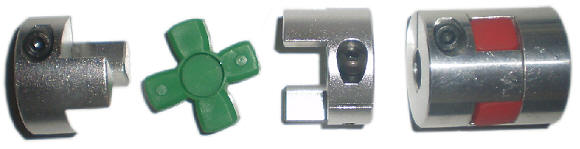

Flexible Coupling
For CNC Machine Stepper Servo AC/DC motor Ball screw
Complete coupling=2 Sides & rubber,Rubber not sold seperate!
|
Part
No One Side |
Side | |||||||||
| Length (L) |
Outer
Diameter (OD) |
Bore 1 (B1) |
Set
Screw (SS) |
Price | Buy it Now | |||||
| mm | Inch | mm | Inch | mm | Inch | |||||
| C34 Series | ||||||||||
| C34635 | One Side | 34 | 1.338 | 25 | 0.984 | 6.35 | 1/4 | M4 | $7.95 | |
| C3408 | One Side | 34 | 1.338 | 25 | 0.984 | 8 | 0.393 | M4 | $7.95 | |
| C34952 | One Side | 34 | 1.338 | 25 | 0.984 | 9.525 | 3/8 | M4 | $7.95 | |
| C3410 | One Side | 34 | 1.338 | 25 | 0.984 | 10 | 0.393 | M4 | $7.95 | |
| C3412 | One Side | 34 | 1.338 | 25 | 0.984 | 12 | 0.472 | M4 | $7.95 | |
| C34127 | One Side | 34 | 1.338 | 25 | 0.984 | 12.7 | 1/2 | M3 | $7.95 | |
| R34 | Rubber | - | - | 25 | - | - | - | - | $4.95 | |
| C35 Series | ||||||||||
| C35635 | One Side | 35 | 1.377 | 30 | 1.181 | 6.35 | 1/4 | M4 | $9.95 | |
| C3510 | One Side | 35 | 1.377 | 30 | 1.181 | 10 | 0.393 | M4 | $9.95 | |
| C3595 | One Side | 35 | 1.377 | 30 | 1.181 | 9.525 | 0.375 | M4 | $9.95 | |
| C3512 | One Side | 35 | 1.377 | 30 | 1.181 | 12 | 0.472 | M4 | $9.95 | |
| C35127 | One Side | 35 | 1.377 | 30 | 1.181 | 12.7 | 1/2 | M4 | $9.95 | |
| R35 | Rubber | - | - | 30 | - | - | - | - | $5.95 | |
| C66 Series | ||||||||||
| C6610 | One Side | 66 | 2.598 | 40 | 1.574 | 10 | 0.393 | M5 | $19.95 | |
| C6612 | One Side | 66 | 2.598 | 40 | 1.574 | 12 | 0.472 | M5 | $19.95 | |
| C66127 | One Side | 66 | 2.598 | 40 | 1.574 | 12.7 | 1/2 | M5 | $19.95 | |
| C6614 | One Side | 66 | 2.598 | 40 | 1.574 | 14 | 0.551 | M5 | $19.95 | |
| C6615 | One Side | 66 | 2.598 | 40 | 1.574 | 15 | 0.590 | M5 | $19.95 | |
| C66158 | One Side | 66 | 2.598 | 40 | 1.574 | 15.8 | 5/8 | M5 | $19.95 | |
| C6616 | One Side | 66 | 2.598 | 40 | 1.574 | 16 | 0.629 | M5 | $19.95 | |
| C6619 | One Side | 66 | 2.598 | 40 | 1.574 | 19.05 | 3/4 | M5 | $19.95 | |
| R66 | Rubber | - | - | 40 | - | - | - | - | $9.95 | |
 |
|
|
