T5
Timing Pulley / Timing belt, Support unit & Shaft are available for building Reducers |
T5
Pulley catalog no. CN-T501
Material Aluminum
Clear
Anodized
All Pulleys come with two set screw
holes (S) set screw not included
All measurement are in metric mm,
each inch = 25.4 mm
|
 |
|
Calculate belt length
here Automatically |
Download Specs Here
|
 |
 |
 |
|
T5 Timing Pulley
|
|
Type
|

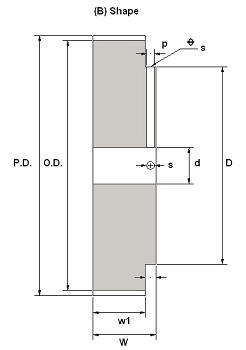

Shape
|
No of Teeth
|
d
|
D
|
P.D.
|
O.D.
|
W
|
w1
|
w2
|
p
|
s
|
Price
|
Buy It Now
|
|
T5AD-14
|
D
|
14
|
6.35
|
14
|
28
|
22.6
|
27
|
21
|
17
|
w-w2
|
M4
|
22.00 |
Call
|
|
T5AD-16
|
D |
16 |
6.35 |
16 |
30 |
24.6 |
32 |
16 |
20 |
w-w2 |
M4 |
22.00 |
Call
|
|
T5AD-20
|
D |
20 |
6.35 |
19 |
35 |
30.98 |
32 |
16 |
20 |
w-w2 |
M4 |
22.00 |
Call
|
|
T5AC-40
|

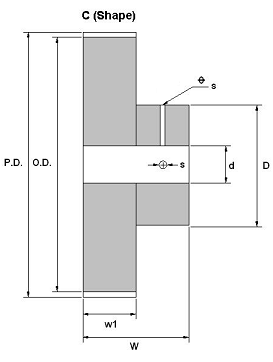

C |
40 |
15 |
38 |
62.65 |
60 |
32 |
20 |
- |
w-w1 |
M4 |
42.00 |
Call
|
|
T5AC-60
|
C |
60 |
15 |
38 |
94.65 |
91.85
|
32 |
20 |
- |
w-w1 |
M4 |
58.00 |
Call
|
|
|
T5 Timing Belt
|
|
Type
|
Length
mm/Inch
|
Width
mm/Inch |
No of Teeth
|
Price
|
Buy It Now
|
|
B5-64
|
320/12.598
|
15/0.59
|
64 |
$13.00 |
Call
|
|
B5-68
|
340/13.385
|
15/0.59
|
68
|
$14.00 |
Call
|
|
B5-72
|
360/14.173
|
15/0.59
|
72
|
$15.00 |
Call
|
|
B5-80
|
400/15.748
|
15/0.59
|
80 |
$16.00 |
Call
|
|
B5-100
|
500/19.685
|
15/0.59
|
100
|
$19.00 |
Call
|
|
B5-120
|
600/23.622
|
15/0.59
|
120
|
$23.00 |
Call
|
|
| |
|
|
