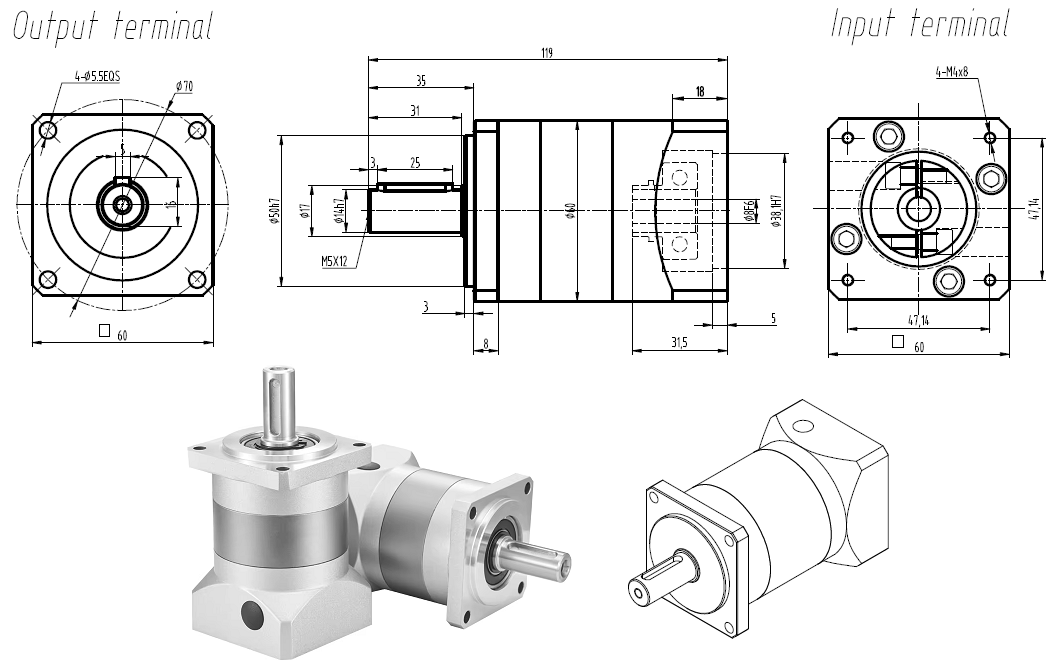

Planetary Gearbox inline Nema 23 / 60mm
✓ In Stock ✗ Stock 10~15 days| Action | Code | Price (CA$) | Description | Dimension | Stock |
|---|---|---|---|---|---|
|
|
PLF060L1100A10 | $360.00 | Planetary Gearbox 60mm Input Frame Ratio 100:1 Double Stage Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø14x31mm In:Ø14,12.7 (1/2"),8,6.35 (1/4")×31.5mm |
✓ |
|
|
PLF060L110A10 | $320.00 | Planetary Gearbox 60mm Input Frame Ratio 10:1 Backlash <10
arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø14x31mm In:Ø14,12.7 (1/2"),8,6.35 (1/4")×31.5mm |
✓ |
|
|
PLF060L205A10 | $320.00 | Planetary Gearbox Nema23 Input Frame Ratio 5:1 Backlash <10
arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø14x31mm In:Ø14,12.7 (1/2"),8,6.35 (1/4")×31.5mm |
✓ |
|
|
PLF060L207A10 | $320.00 | Planetary Gearbox Nema23 Input Frame Ratio 7:1 Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø14x31mm In:Ø14,12.7 (1/2"),8,6.35 (1/4")×31.5mm |
✓ |
|
|
PLF060L210A10 | $320.00 | Planetary Gearbox Nema23 Input Frame Ratio 10:1 Backlash <10
arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø14x31mm In:Ø14,12.7 (1/2"),8,6.35 (1/4")×31.5mm |
✓ |

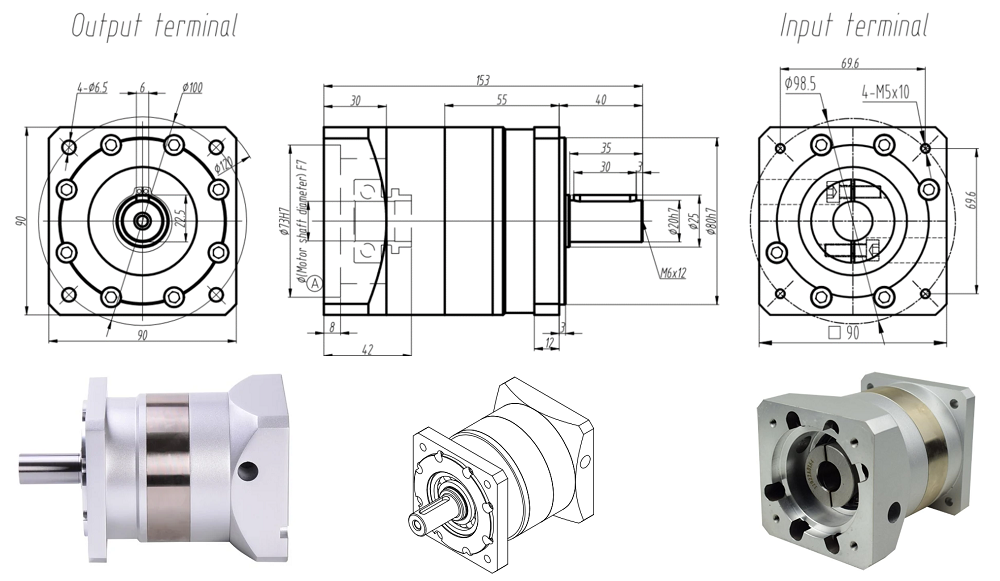

Planetary Gearbox inline Nema 34 / 80mm
✓ In Stock ✗ Stock 10~15 days| Action | Code | Price (CA$) | Description | Dimension | Stock |
|---|---|---|---|---|---|
|
|
PLF080L105A10 | $389.00 | Planetary Gearbox 80mm Input Frame Ratio 5:1 Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
|
|
PLF080L107A10 | $389.00 | Planetary Gearbox 80mm Input Frame Ratio 7:1 Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
|
|
PLF080L110A10 | $389.00 | Planetary Gearbox 80mm Input Frame Ratio 10:1 Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
|
|
PLF080L205A10 | $389.00 | Planetary Gearbox Nema 34 Input Frame Ratio 5:1 Backlash <10 arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
|
|
PLF080L207A10 | $389.00 | Planetary Gearbox Nema23 Input Frame Ratio 7:1 Backlash <10
arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
|
|
PLF800L210A10 | $389.00 | Planetary Gearbox Nema23 Input Frame Ratio 10:1 Backlash <10
arc-min Max input RPM 5000 Rated input RPM 3000 |
Shaft Out:Ø19.05 (3/4")x35mm In:Ø19.05 (3/4"),14,15.875 (5/8"),12.7mm(1/2") |
✓ |
