Pre-Assembled All Designed and Made in Canada Gantry Kit for Robotics actuators and CNC Application,
Kits include fully assembled gantry, two side supports, Z-axis ready to integrate
with your own custom-built table. Now available with up to 120″ gantry
and depth up to 240″! We can also custom-build the base or any design you propose.
Email info@motiontek.ca for a 24-hour quotation.
⭐ Lego L2 Gantry — Promotion
Gantry, 2 sides, Z axis, 4 Stepper Motors Working area XYZ 32x46x3.8 Inch
Hiwin 20mm rail on XYZ Rack & Pinion on XY Ball Screw on Z
Shipping calculated based on location
Regular $4,525.00 CAD
Pronmotional Price $3,500 CAD
Lego L2 Gantry↑ Go To Top
Lego L2 Gantry Pre-Assembled Heavy Duty Gantry
Custom SizeSize: 24″×36″ to 60″×240″ XY working area · Z axis 4″, 6″
Lego L2 Gantry Rack & Pinion XYYZ
Lego L2 Manual with Crank Wheel
Lego L2 Manual with Crank Wheel
Lego L2 Gantry XYYZ
- 8020 Aluminum extrusion 1545 for Gantry, 1530 for 2 Sides
- Aluminum machined gantry bracket & Z axis
- Precision Linear Square guide: 2 rails 20mm on XYZ, 2 Bearings XZ, 4 Y axis
- Precision Rack & Pinion Module 1.0, 1 on X and 2 on Y axis, direct drive
- Precision Square Rail Guide & ball screw on Z axis
- Nema 23 or 34 Bracket 2Y, 1XZ
- Optional Middle extrusion cross
- Optional Stepper Motors KIT — Drives, Power supply, Breakout board, Home switch
- Optional Delta AC Servo Motor Kit — Drives, Cables, Ethernet Controller, Home switch
- Optional Rotary axis
- Optional Dual Z axis
Lego L1 Gantry↑ Go To Top
Lego L1 Gantry Pre-Assembled Heavy Duty Gantry
Ships in 6 Parts AssembledSize: 24″×36″ to 80″×240″ XY working area · Z axis 6″, 8″, 10″
Lego L1 Gantry Rack and Pinion XYYZ
Lego L1-BS2 Gantry All Ball Screw XYYZ Two Ball Screws on Y axis sides
Lego L1-BS1 Gantry All Ball Screw XYZ One Ball Screw on Y axis on middle
- 8020 Aluminum extrusion 3060 for Gantry, 1530 or 3030 for 2 Sides
- Aluminum machined gantry bracket & Z axis
- Precision Linear Square: 2 rails 20mm on XYZ, 4 Bearings XYZ axis
- Precision Helical Agma 7 Rack & Pinion Module 1.0, 1 on X and 2 on Y axis, direct drive
- Precision Square Rail & ball screw on Z axis
- Nema 23 or 34 Bracket 2Y, 1XZ
- Optional Middle extrusion cross
- Optional Stepper Motors KIT
- Optional Delta AC Servo Motor Kit
- Optional Rotary axis
- Optional Dual Z axis
Lego L3 Gantry↑ Go To Top

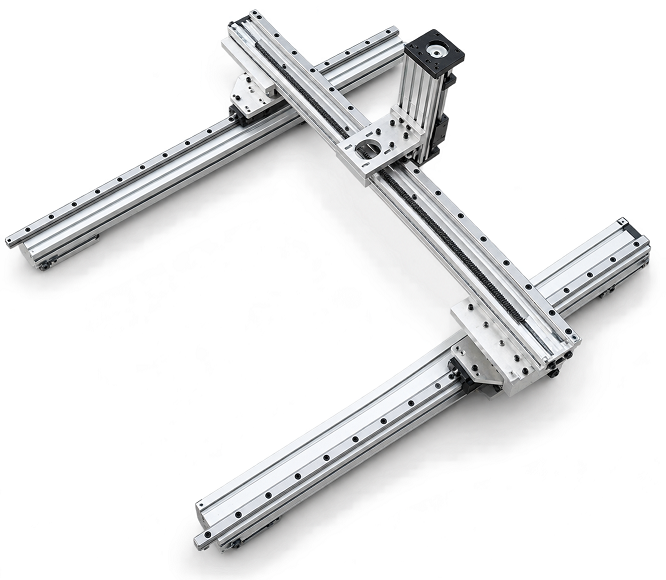

Lego L3 Pre-Assembled Light Gantry for Plasma, Laser & Light CNC Router
Lower CostSize: 24″×24″ to 60″×120″ XY working area · Z axis 4″ · Lower cost, keeps high quality
Lego L3 Gantry For Plasma Laser CNC Mechanical Kit
Lego L3 Gantry Kit
- 8020 Aluminum extrusion 1530 for Gantry & 2 Sides
- Aluminum machined gantry bracket
- Precision Linear Square guide: 1 rail 20mm X, 1 Bearing X; 2 rails 20mm Y, 4 Bearings Y
- Precision Rack & Pinion Module 1.0, 1 on X and 2 on Y axis, direct drive, Nema 23 Bracket XYYZ
- Optional Torch Lifter or Light Router on Z axis
- Optional Middle extrusion cross
- Optional Stepper Motors Nema 23 Kit on XYYZ
- Optional Rotary axis
- Optional Dual Z axis
Industries & Applications
What Industries Can Use These Machines?
CNC Milling Machines
CNC Routers
CNC Laser Cutters & Engravers
CNC Plasma Cutters
CNC 3D Printers
CNC Water Jet Cutters
CNC Pick and Place
CNC Glue Dispensers
CNC Fluid Fillers
CNC Soldering Machines
CNC Inspection & Testing
CNC Ultrasonic Welders
CNC Hot Melt Applicators
CNC Medical Syringe Filling
CNC Wire Bending
CNC Potting & Encapsulation
Pick & Place with Glue Dispensing
Lego L1+ Gantry↑ Go To Top

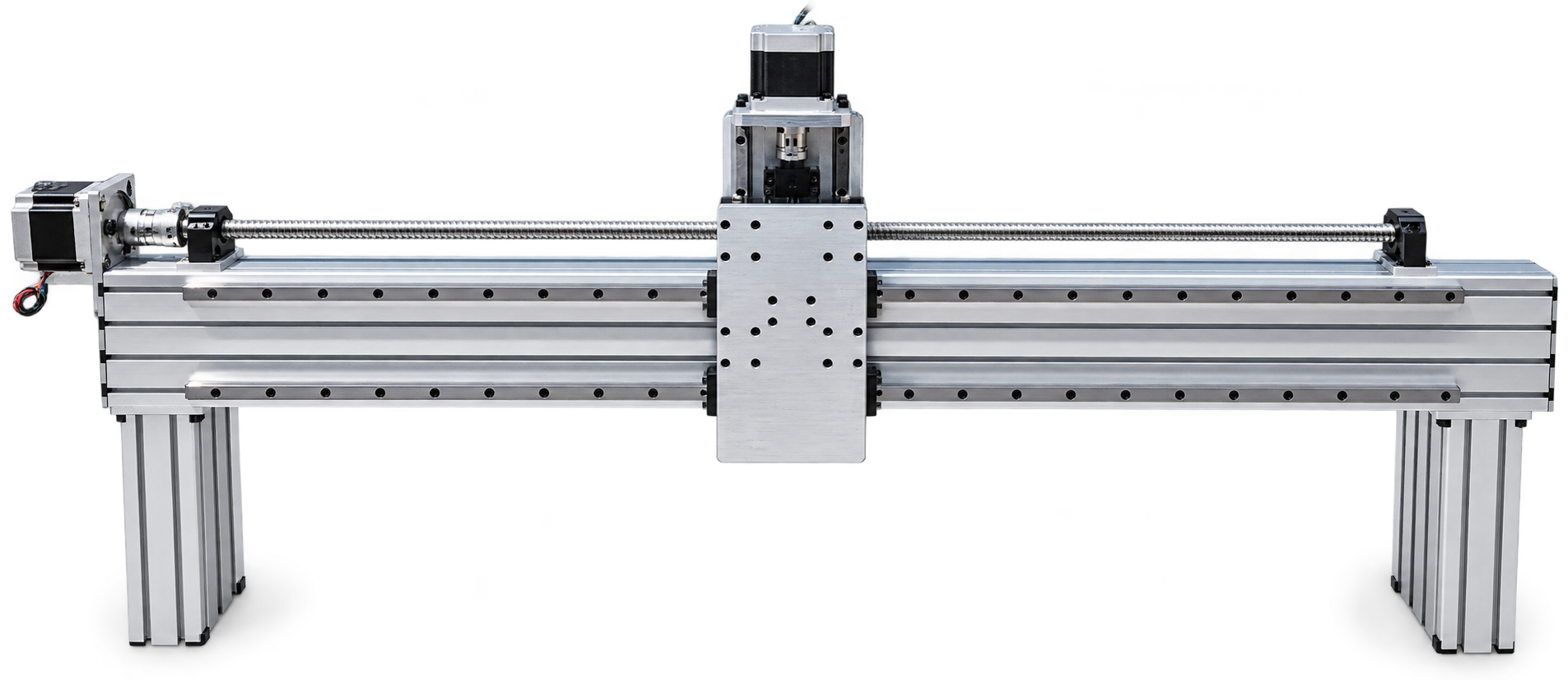

Lego L1+ Gantry Pre-Assembled Super Heavy Duty Gantry
Up to 120″×240″Size: 24″×24″ to 120″×240″ XY working area · Z axis 6″, 8″, 10″ up to 24″
Lego L1+ Super Heavy Duty, Available in Large Working area in Rack and Pinion or Small Working area in Ball Screw
Lego L1++ Super Gantry
Lego L1+ Gantry Side in 3"x3" Extrusion
- 8020 Aluminum extrusion, one or double 3060 Gantry, 3030 for 2 Sides
- Aluminum machined gantry bracket & Z axis
- Precision Linear Square guide: 2 rails 25mm on Y, 4 Wide Bearings; 2 rails 20mm on XZ, 4 Bearings
- Precision Helical Agma 7 Rack & Pinion Module 1.5, 1 on X and 2 on Y axis, direct drive or Gearbox
- All Ball Screw on XYZ available for max 24″×24″ working area
- Precision Square Rail Guide & ball screw on Z axis
- Nema 23 or 34 Bracket 2Y, 1XZ
- Optional Middle extrusion cross
- Optional Stepper Motors KIT
- Optional Delta AC Servo Motor Kit
- Optional Rotary axis
- Optional Dual Z axis
Lego CB Gantry↑ Go To Top
Lego CB Gantry Very Compact, Belt Driven, High Speed
6″ Total HeightFor vertical & horizontal use · Size: 24″×24″ to 60″×120″ XY · Z axis 2″, 4″ & 6″
Lego CB Gantry Compact High Speed Belt Drive
- Very compact CNC machine — 6″ total height
- 8020 Aluminum extrusion 1530 Gantry and Sides
- Aluminum machined gantry bracket & Z axis
- Precision Linear Square guide: 2 rails 20mm on Y, 4 Bearings; 1 rail 20mm on XZ, 1 Bearing
- Precision 15mm timing belt: 1 on X, 2 on Y axis, driven by single shaft
- Pulley reduction drive 3:1
- Precision Square Rail Guide and ball screw on Z axis
- Optional Middle extrusion cross
- Optional Stepper Motors Nema 23 or 34 Kit
- Optional Delta AC Servo, Drives, Cables, Ethernet Controller, Home switch
Rotary R5 4th Axis↑ Go To Top

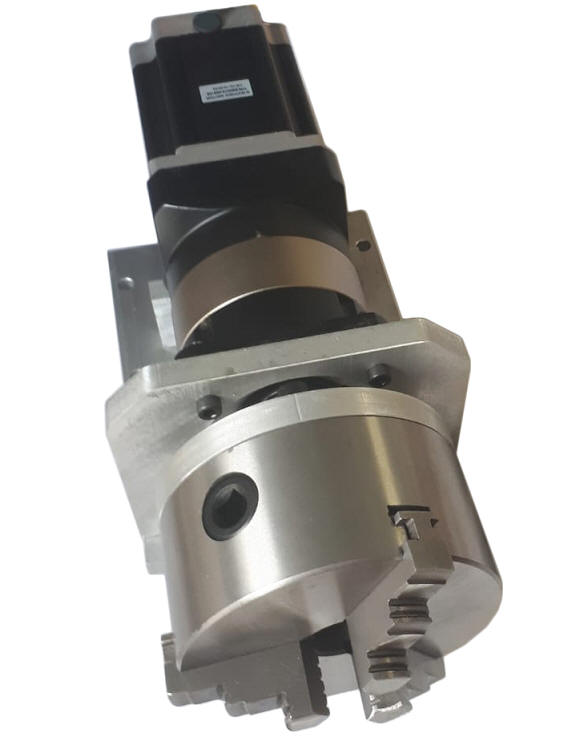

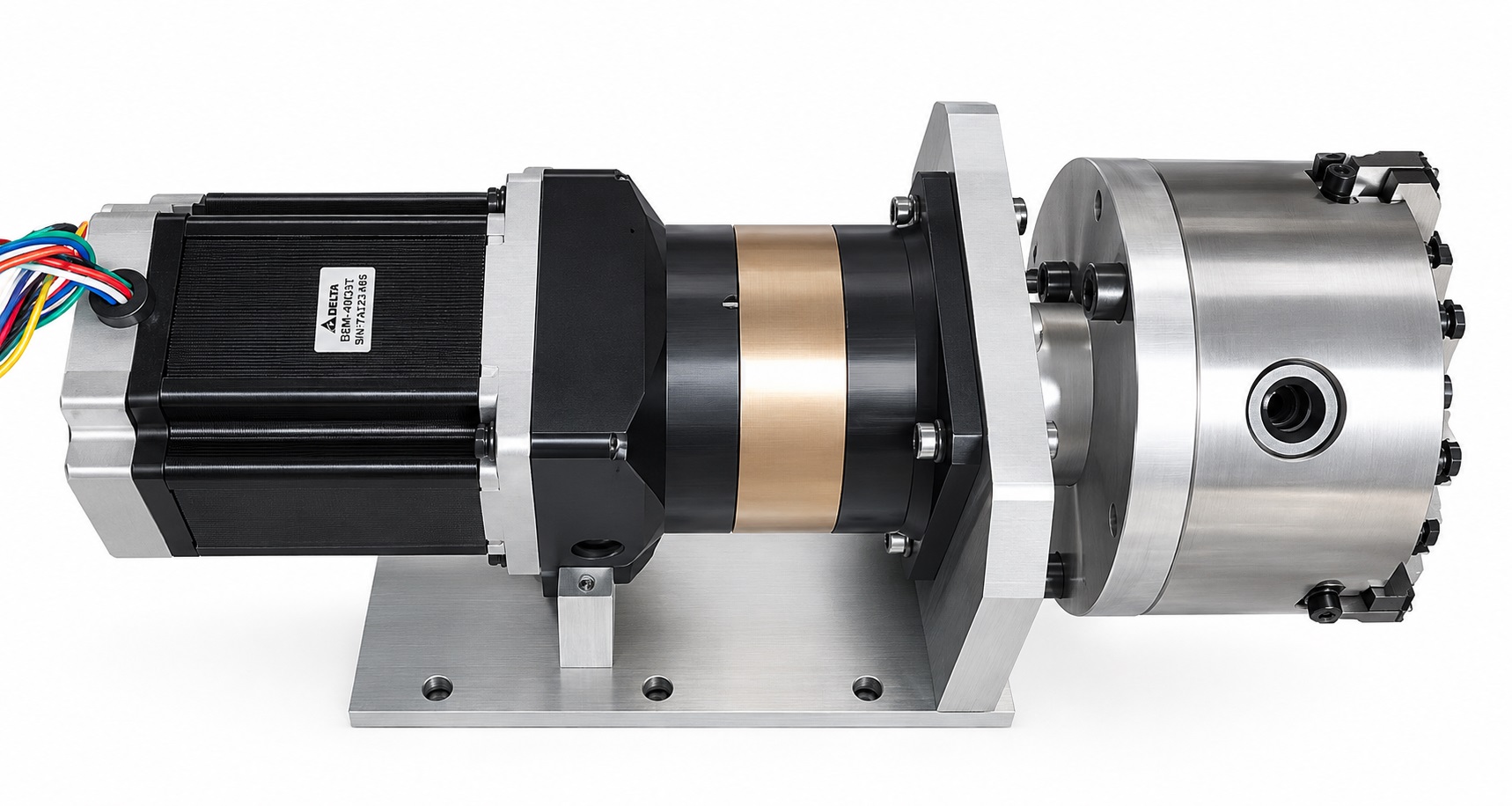

Rotary R5 Pre-Assembled 4th Axis Rotary Indexer
R5 4th Rotary Axis
- 5″ Rotary Diameter Holding Chuck
- Gear ratio: 5:1, 8:1, 10:1, 15:1, 20:1
- Stepper or Servo Motor
- Custom sizes available
Z Axis Z6↑ Go To Top
Z Axis Z6 Pre-Assembled Z Axis for CNC Machines in multiple working area
Up to 36″
Z Axis 4,6,8,12,14,16,18 up to 24 Inch Travel Front view
Z Axis Top View CNC Router Mill Plasma Laser
Z Axis Side view CNC Router Mill Plasma Laser
- Z axis from 5.75″ to 24″ travel
- 12mm thick plate
- Square rail 20mm, 4 Bearings
- Ball screw 16mm , 20mm, 25mm with support units
- Nema 23 or 34 Stepper motor or Servo Motor size 60mm or 80mm bracket
- Holds up to 40 lb to 120 lb in vertical travel
Custom CNC Machines↑ Go To Top
Other Custom Machines Controllers, Robotics BoreScope Camera Inspection, Wire Cut, Router and Plasma CNC Machine.
CNC Borescope Inspection Machine

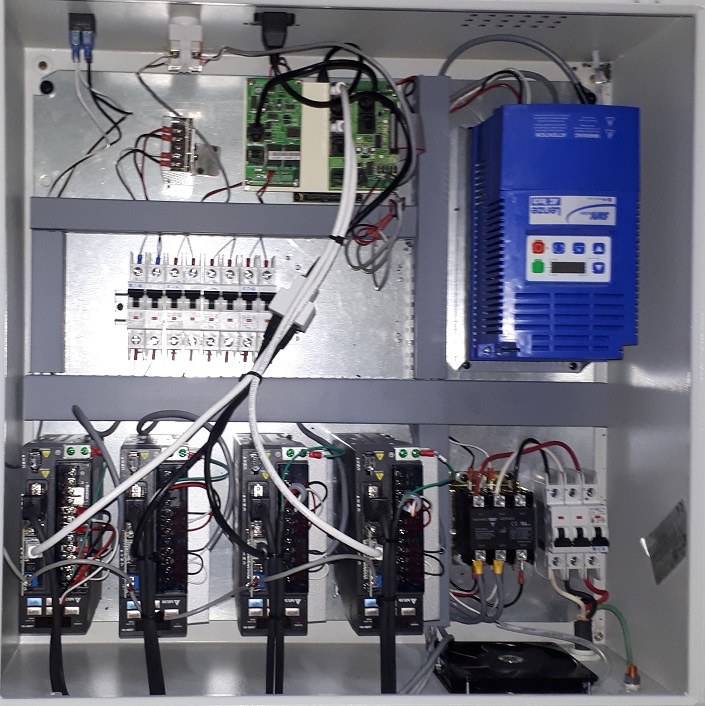

CNC Delta Servo Controller 4 Axis with Spindle Inverter

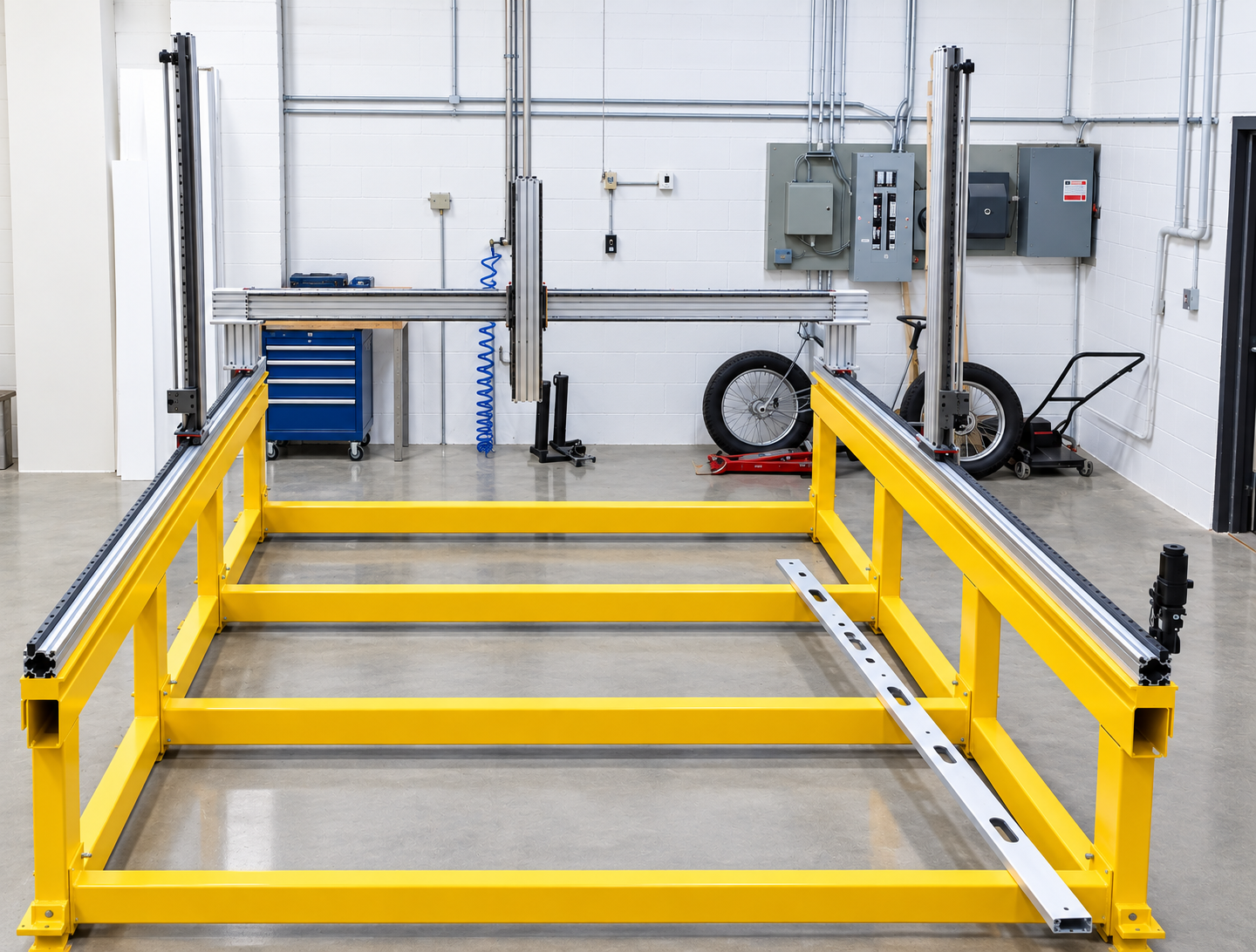

CNC Large Scale Custom Built X-100 Y-140 Z-36 Inch Working area CNC Router and Wire cutting machine on the same table

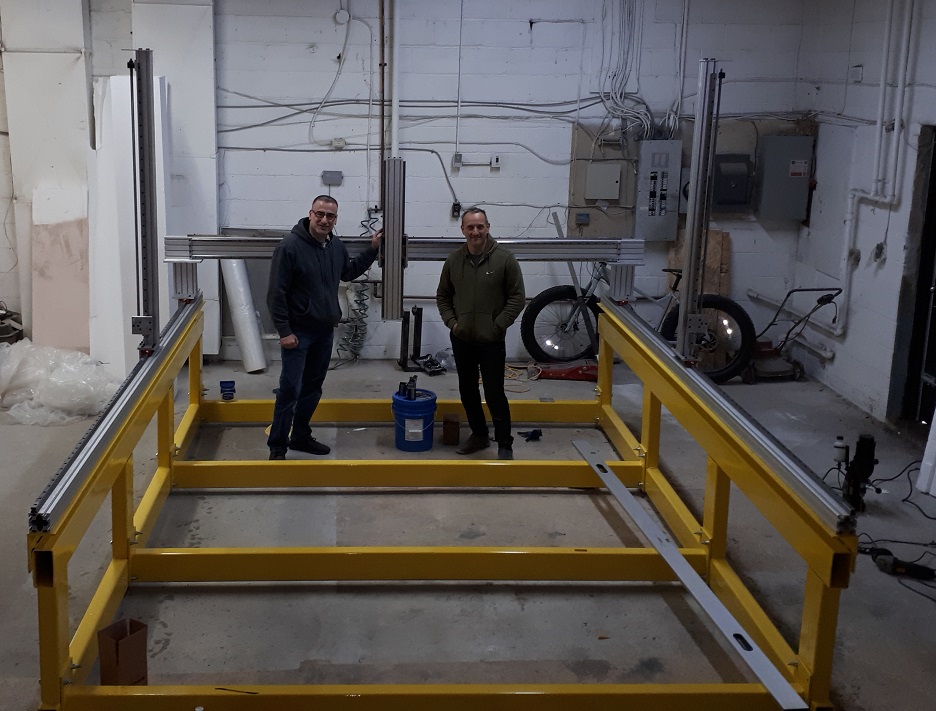

CNC Large Scale Custom Built X-100 Y-140 Z-36 Inch Working area CNC Router and Wire cutting machine on the same table
Mechanical Kit with Customer Steel Table — Sides Bolted on Top
Mechanical kit with customer steel fabricated table example. Sides bolted on the side top of the fabricated table.
Note for Buyers & Machine Builders
📋 Lego CNC Kit Specifications
- XY Working Area: All kits support custom XY up to 96″×144″ for Lego L1 and L1+, and up to 60″×144″ for Lego L2
- Z-Axis Travel: 5.75″ for L1/L1+; 3.75″ for L2; 4″ for L3 — can be customised
- Gantry Clearance: Up to 14″ for L1+; 10″ for L1, L2 and L3
📦 Kit Includes
- Fully assembled gantry with Z-axis
- Two sides with aluminum extrusion, linear guide rails, bearings, and rack & pinion system
- T-slot nuts and bolts for attachment to your custom steel or aluminum table
⚠ Important Notes
- Spindle Compatibility: Front plate is standard (non-machined) — spindle attachment handled by end user
- Mechanical Kit Only: Excludes motors, electrical controls, software, and control system — machine builder's responsibility
- Advisory Only: We provide design consultation but are not involved in final machine design or electrical/software setup
- Specifications are subject to change without prior notice
- How to Build a CNC Machine
Full Video about MotionTEK products
MotionTEK Products
Full Turn-Key CNC Router Video
Watch: Full Turn-Key CNC Router Based on the Lego Gantry Kit
Z Axis Linear Actuator — Heavy Duty 75lb Lift
↑ Go To TopReady to Build Your CNC Machine?
Tell us your working area, material, and application — we will size and quote the right kit for you.
