Internal Height:49mm Width:75mm - Outer Height:67mm Width:102mm, Bending Radius:125mm

Internal Height:65mm Width:100mm - Outer Height:85mm Width:152mm, Bending Radius:150mm

High precision Linear Actuator Fast Ball Screw 16mm Ø 16mm pitch, Nema23 Motor Frame, 20mm Rail, moving Horz weight 75 lb Vert 30lb, moving speed up to 250 IPM

5mm pitch, 16mm ⌀, 100mm length, machined shaft + ball nut

Older-type 4-axis breakout board with RJ45 quick-setup connection. Compatible with Mach3/4, DeskCNC, LinuxCNC. Microcontroller-based SCHP.

- Easy plug & play -- connects to driver step/dir via RJ45 network cable
- Buffered inputs/outputs -- delivers solid +5VDC at 24mA from +3.3V or +5VDC parallel port signal
- Built-in DB25 female connector
- External Enable Pin (EN)
- Output pins: 1,2,3,4,5,6,7,8,9,14,16,17 (or 1,14,16,17)
- Input pins: 10,11,12,13,15
- Power supply: +5V DC

Package Includes: 1x Breakout Board Adapter

Note: Mach4 may require a motion controller to run alongside these boards (per source page).

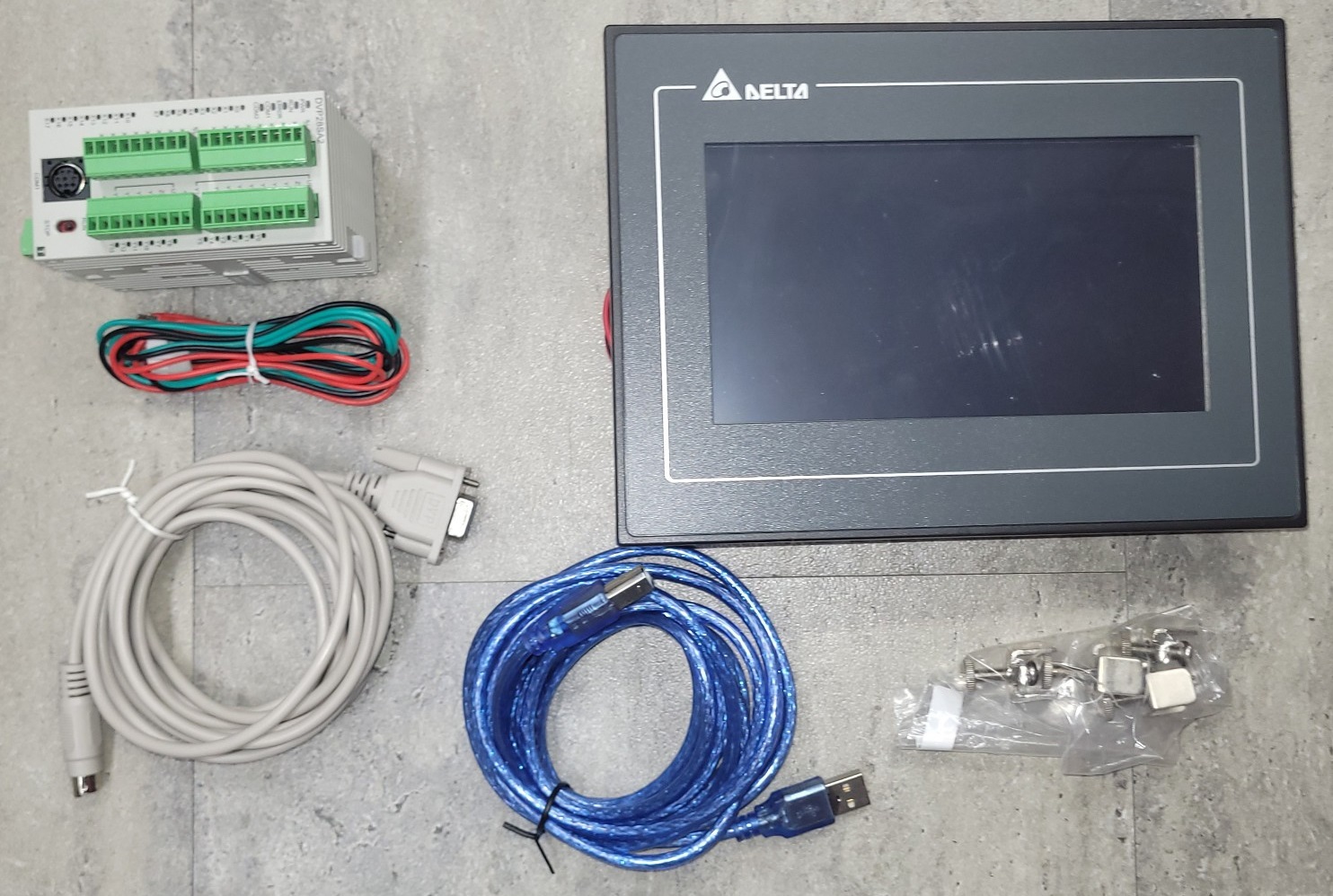

Delta PLC solution Including HDMI DOP-107BV, PLC DVP28SA211T
With All Integrated cables & connectors Delta PLC Solution
HDMI –Specs:
7” TFT touchscreen (800×480)
Cortex-A8 CPU, 256MB RAM/ROM
RS-232 / RS-485, USB
24V DC
Function:
Operator interface (monitor + control)
Displays machine status, alarms

PLC – Specs (typical DVP-SA2 series):
~16 DI / 12 DO (transistor)
High-speed counters & pulse outputs
RS-485 communication
Compact, expandable design
Function:
Main controller (logic execution)
Controls sensors & actuators

🔗 Integration
Flow: Sensors → PLC → Outputs ↕ HMI
PLC reads inputs and runs logic
HMI communicates with PLC (RS-485)
Operator controls machine via HMI

Application Best for small to medium machines, such as:
Packaging machines
Conveyor systems
Simple automation lines
Filling / labeling systems

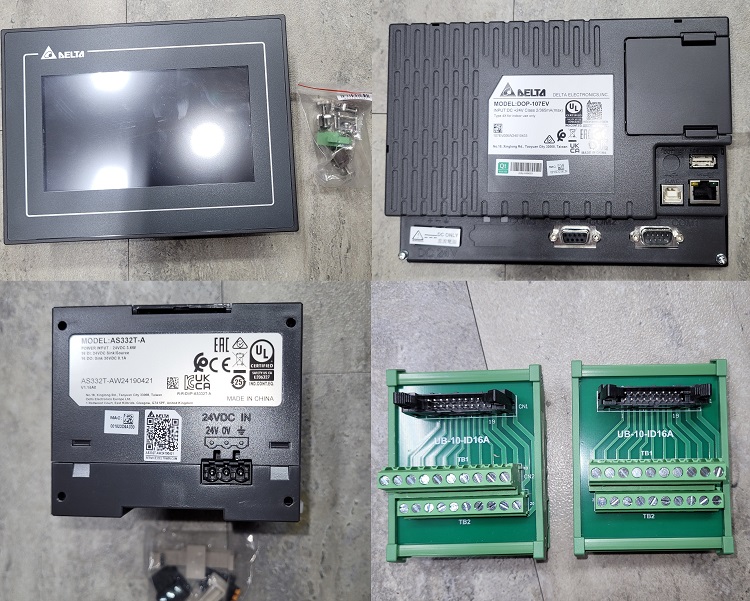

Delta PLC solution for large machinery Including HDMI DOP-107EV , PLC AS332T-A & UB-10-ID16A x 2
With All Integrated cables & connectors
System Overview (Delta PLC Solution)
HMI – Delta DOP‑107EV (x1)

Specs:
7” touchscreen (800×480)
Ethernet / RS-485 / USB
24V DC
Function:
Operator interface
Displays status, alarms, data
Sends commands to PLC

PLC – Delta AS332T‑A (x1)
Specs:
16 DI / 16 DO built-in
Ethernet + serial communication
High-speed counters & pulse output
Expandable
Function:

Main controller (logic execution)
Processes inputs → controls outputs
Communicates with HMI & modules

I/O Modules – Delta UB‑10‑ID16A (×2)
Specs:
16 digital inputs each
Total: 32 inputs

Function:
Connect sensors (switches, proximity, buttons)
Expand PLC input capacity

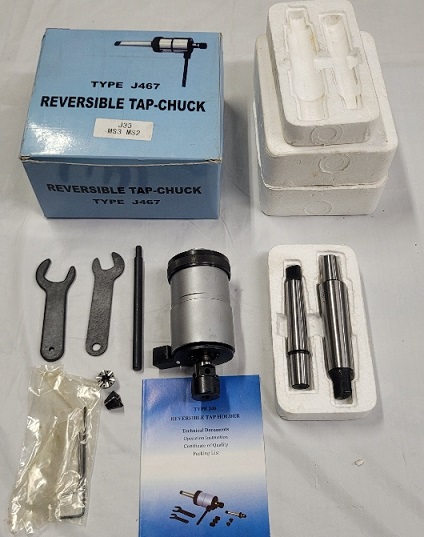

New out of the box Tapping Chuck Auto Reversable all tools as the picture

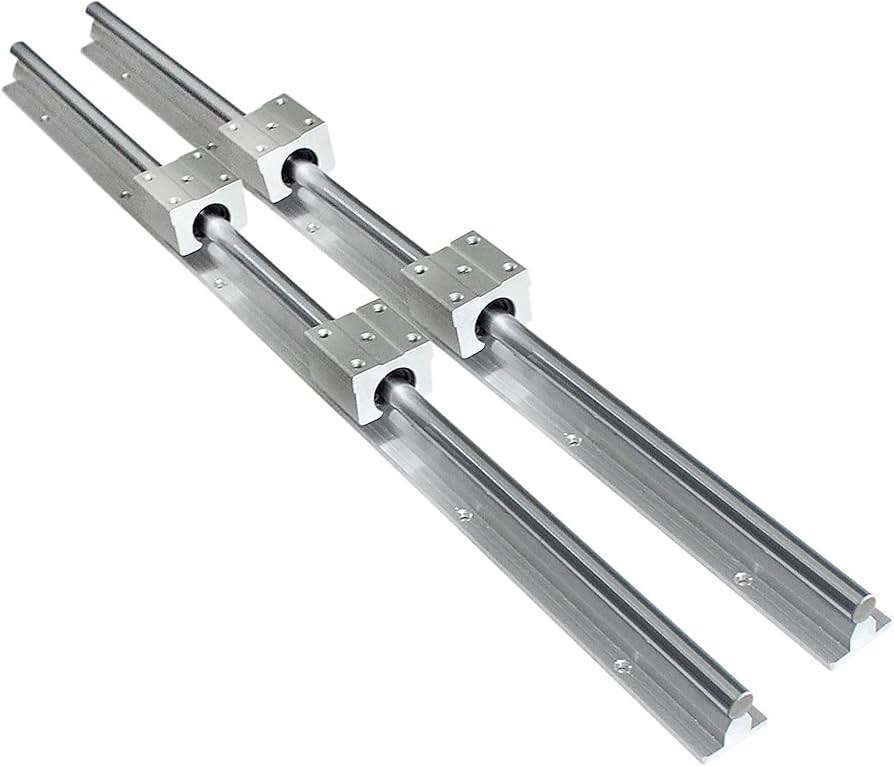

CNC guiding round shaft rail & Bearing Block

CNC guiding round shaft rail & Bearing Block

CNC guiding round shaft rail & Bearing Block

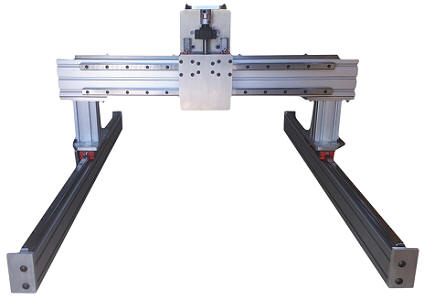

8020 Aluminum extrusion 1545 for Gantry, 1530 for 2 Sides
Aluminum machined gantry bracket & Z axis
Precision Linear Square guide: 2 rails 20mm on XYZ, 2 Bearings XZ, 4 Y axis

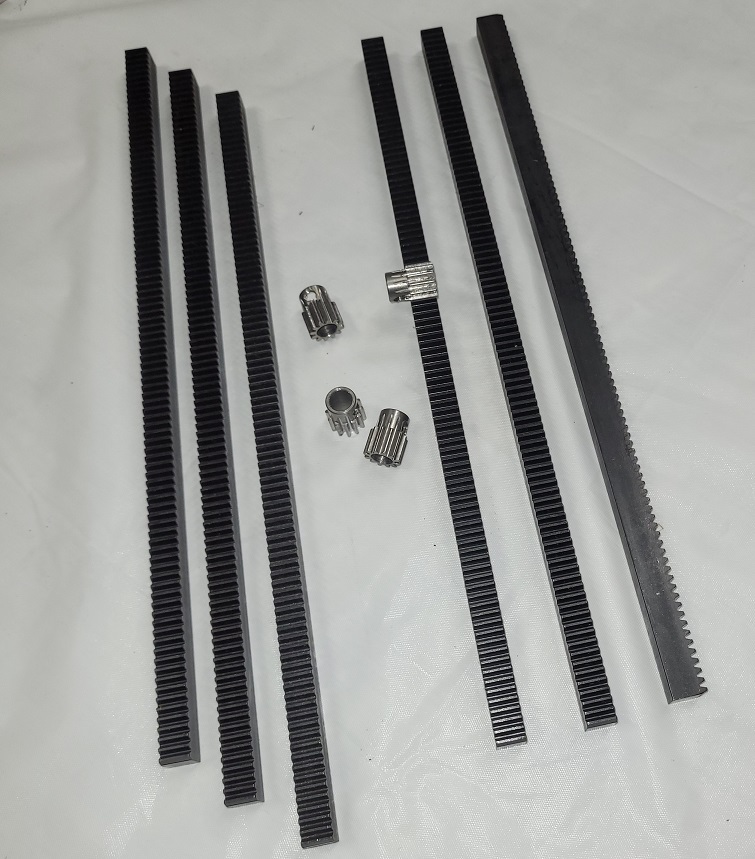

Precision Rack & Pinion Module 1.0, 1 on X and 2 on Y axis, direct drive
Precision Square Rail Guide & ball screw on Z axis
Nema 23 or 34 Bracket 2Y, 1XZ
Optional Middle extrusion cross
Optional Stepper Motors KIT — Drives, Power supply, Breakout board, Home switch
Optional Delta AC Servo Motor Kit — Drives, Cables, Ethernet Controller, Home switch
Optional Rotary axis
Optional Dual Z axis

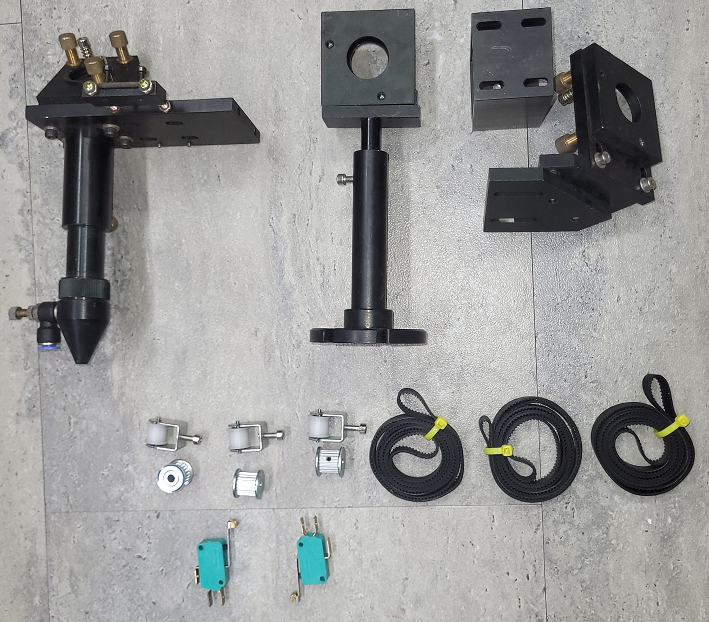

IT Includes
1- 3 Mirror Lens Fixture
2- 1 Focus Lens Fixture
3- 3 Belts 20” Travel
4- 3 Pulleys Mxl 22 Teeth ¼” bore
5- 3 Rolles
6- 2 Home Micro Switches

Product made in USA Tariff free in USA & Canada

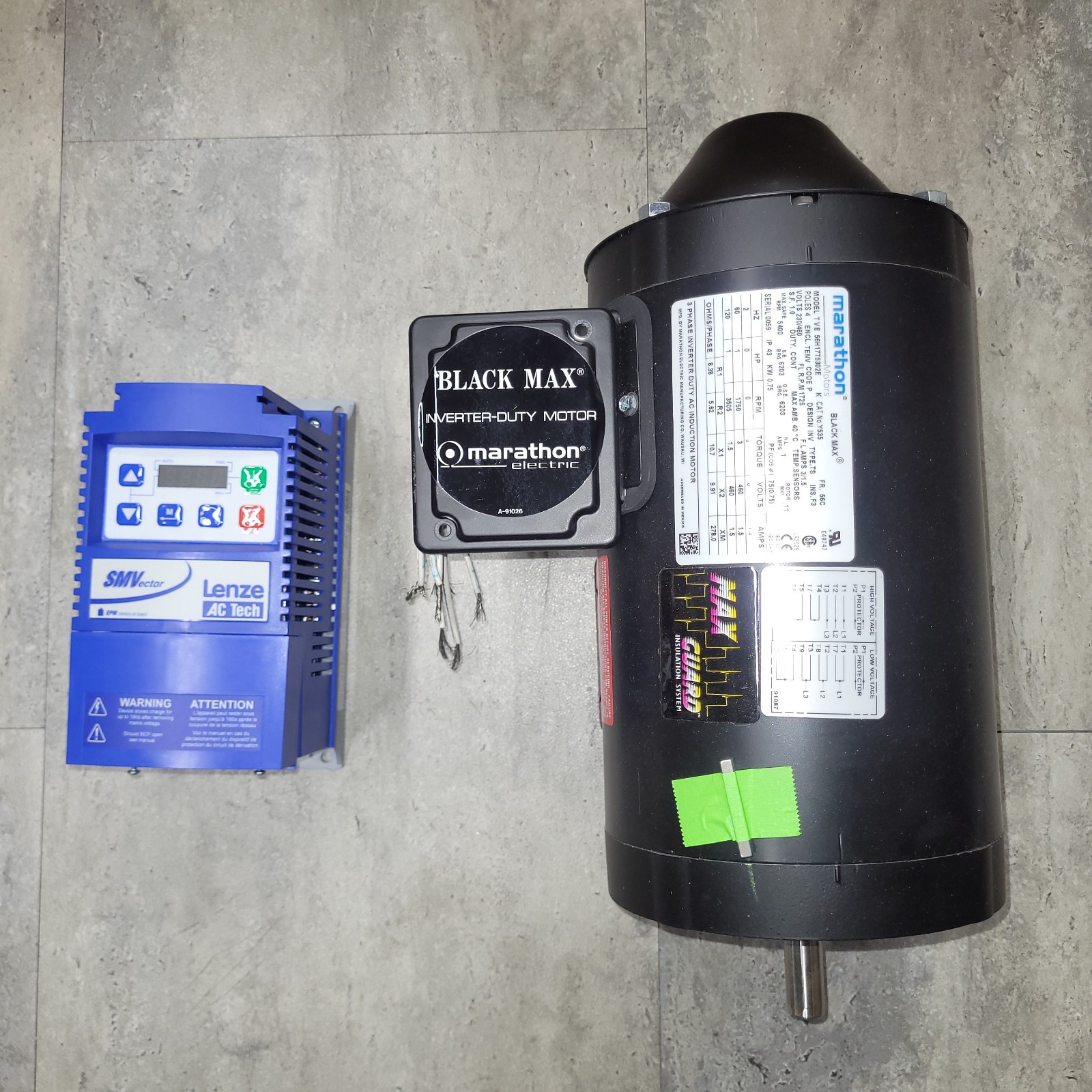

Drive & Motor Solution
ESV751N02YXB Lenze VFD Inverter 0.75KW 1/3 Phase input , 3 Phase output 220V
VFD – Lenze ESV751N02YXB (0.75 kW / 1 HP)
Specs:
Power: 0.75 kW (1 HP)
Input: 220–240V (1Ø / 3Ø)
Output: 3-phase motor control
Output current: ~4.2 A
Frequency range: up to 500 Hz
Enclosure: NEMA 1
Function:
Controls motor speed & torque
Provides soft start/stop
Energy saving & protection

Motor – Marathon TVE56H17T5302E (1 HP Dual Speed)
TVE 56H17T5302E Marathon Motor 1 HP dual RPM @ 60Hz 1705 RPM @ 120Hz 3505RPM 220/460 VAC
Specs:
Power: 1 HP
Voltage: 220 / 460 VAC
Speed:
1705 RPM @ 60 Hz
3505 RPM @ 120 Hz
Frame: 56H
Type: Industrial AC motor
Function:
Converts electrical energy → mechanical motion
Dual-speed operation for flexible applications


Integration
Flow:VFD → Motor
VFD converts input power → variable frequency
Controls motor speed (RPM) based on demand
Enables precise control (acceleration, torque)

Applications
Suitable for:
CNC Machines Mill, Lathe
Conveyor systems
Pumps & fans
Compressors
Light industrial machinery

Summary
VFD = control (speed + protection)
Motor = power (mechanical output)

6 Items available in stock

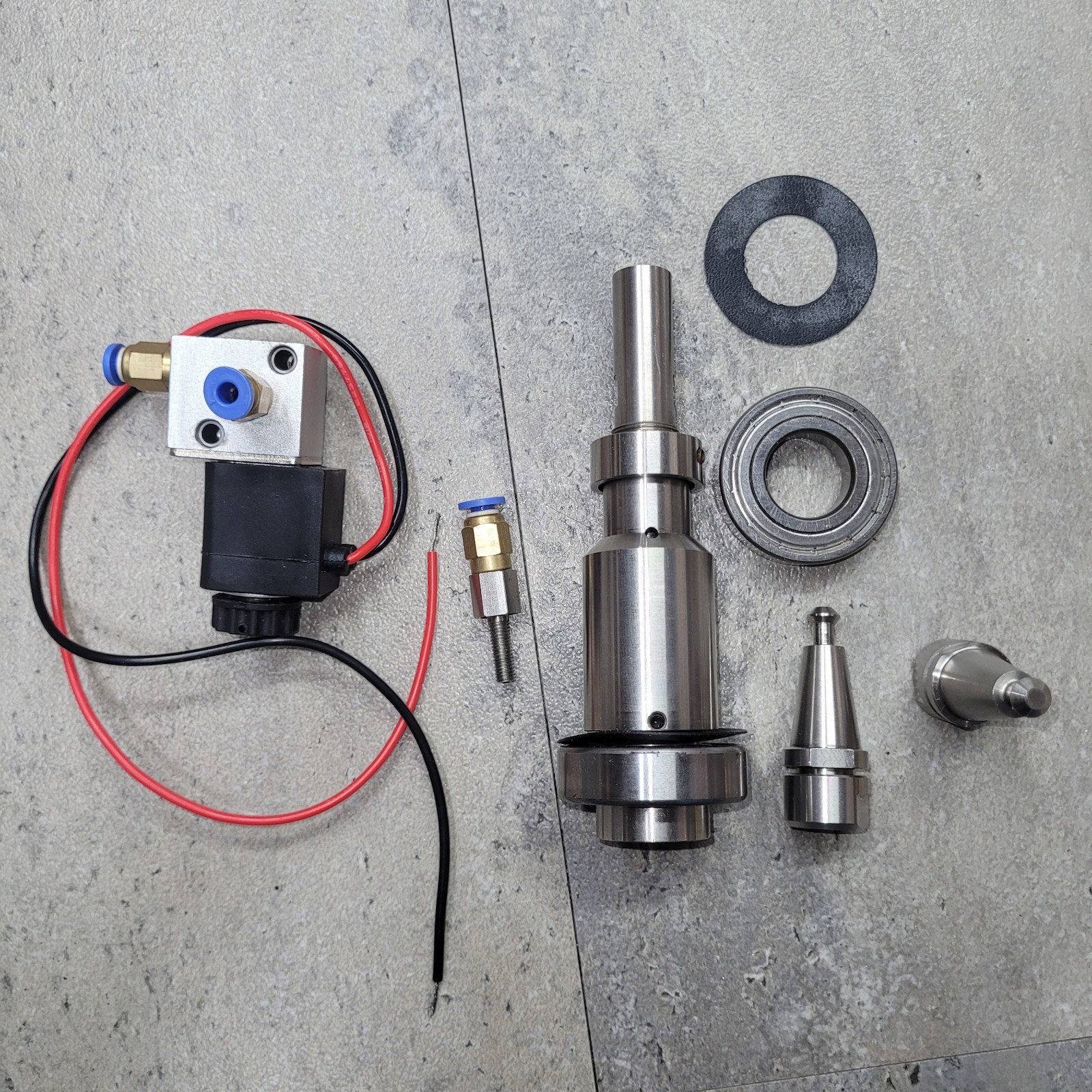

Sherline ATC
This tool changer spindle is specially designed for the Sherline 5000er series.
However, you can also use it for any small CNC MILL projects.
It important that the two ball bearings accurately fit into a housing bracket.
It is a quite simple system, the space between the two ball bearings is sealed by two rubber washers above the bearings adding air pressure.
The air presses the internal pneumatic cylinder, and the tool holder is ejected.
The tool holder is fixed with a spring in the cone.
The tool holder works with ER11 collets (selectable from 1,0 mm to 8,0 mm).

Technical data:
Total length: 130 mm
Inner space between bearings 46.5mm
Outer space out of bearing 70.5mm
Upper & Lower bearing is OD 42mm
Upper bearing ID is 20mm, Lower Bearing ID 20mm
Bearing thickness 12mm
Material: Stainless steal
Work-pressure: 8 bar
Collets: ER11
Concentricity: 0,01 mm
Maximal spindle speed: 3.000 RPM

Kit Comes with:
ATC Tool changer with 2 rubbers & bearings
Tool holder x 2 ER11 Collets
Solenoid valve input/output

Stand-alone THC/OHC controller, fully independent of CNC software. Closed-loop DC motor drive w/ PWM. Capacitive sensor ring senses torch-to-metal height. Circuit-break protection (auto torch lift on HF cable disconnect/short/open). Waterproof/dustproof/shockproof enclosure. Power AC24V+-10%% 50/60Hz. Motor drive current 1-4A. Working temp 10-60C. Height accuracy 0.2mm. Adjustment range 1-20mm from work surface. Max output 100W. HF-cable length 200mm-1000m. Spec: https://www.motiontek.ca/pdf/THCSAC200-K.pdf

USB Motion Controller
Adapter/Converter LPT DB25 Parallel Port
-Motion control on up to 6-axis (X, Y, Z, A, B, C).
-Configurable
maximum stepping frequency, 25kHz 20usec, 50kHz 10usecm,100kHz 5usec pulse length
-12 5Volt 20mA (TTL level)
Buffered outputs with current sink/source capability.
5 input pins with at 5V (TTL level) with Schmidt triggered filtered inputs internally pull-up to 5Volts at 4.7kOhms.
-DB25 LPT port compatible
-Support Mach3/Mach4 most functions TTL,I/O, spindle 0-10V
-Package Includes
1 x UC100
1 x USB Cable

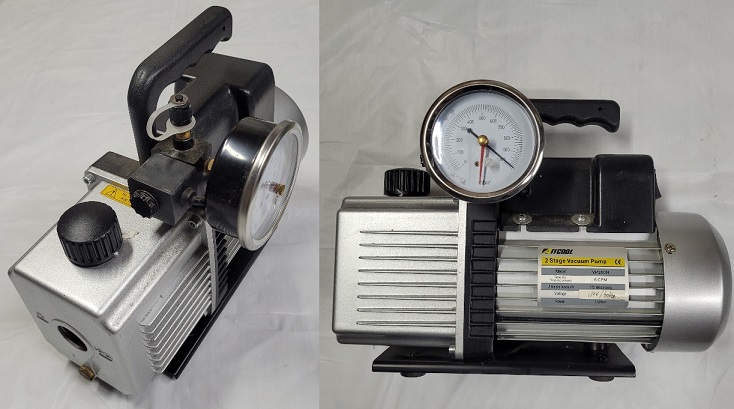

New Out of the box, Vaccum pump, 1/2 HP, 6CFM, 2 stages, very low sound, Vacuum guage, 110VAC

Hiwin 20mm rail, 4 HGH20 Bearings, 16mm Ball Screw, Nema34 Motor included, 4 Back bearings HGW20 included to mount on 8020 3060 Gantry with 20mm rail.
