Delta AC Servo Motors, Drives, Power & Encoder cables

Delta AC Servo 3-Axis CNC Kit | Power: 200W per axis | Motor: Brushless 3-phase 220V 3000 RPM | Encoder: 17-bit high-resolution (160,000 p/rev) | Driver: Delta AC 220V — Position / Speed / Torque control modes | Input: Line driver & Open-collector | Electronic gear ratio configurable | Includes: Motor x3, Driver x3, Encoder cable 5m x3, Power cable 5m x3, Signal connector x3 | Motors and drivers tuned and configured to customer requirements | Compatible: Mach3/4, Masso, PLC, USB controllers | Plug-and-play cables

Delta AC Servo 3-Axis CNC Kit | Power: 400W per axis | Motor: Brushless 3-phase 220V 3000 RPM | Encoder: 17-bit high-resolution (160,000 p/rev) | Driver: Delta AC 220V — Position / Speed / Torque control modes | Input: Line driver & Open-collector | Electronic gear ratio configurable | Includes: Motor x3, Driver x3, Encoder cable 5m x3, Power cable 5m x3, Signal connector x3 | Motors and drivers tuned and configured to customer requirements | Compatible: Mach3/4, Masso, PLC, USB controllers | Plug-and-play cables

Delta AC Servo 3-Axis CNC Kit | Power: 750W per axis | Motor: Brushless 3-phase 220V 3000 RPM | Encoder: 17-bit high-resolution (160,000 p/rev) | Driver: Delta AC 220V — Position / Speed / Torque control modes | Input: Line driver & Open-collector | Electronic gear ratio configurable | Includes: Motor x3, Driver x3, Encoder cable 5m x3, Power cable 5m x3, Signal connector x3 | Motors and drivers tuned and configured to customer requirements | Compatible: Mach3/4, Masso, PLC, USB controllers | Plug-and-play cables

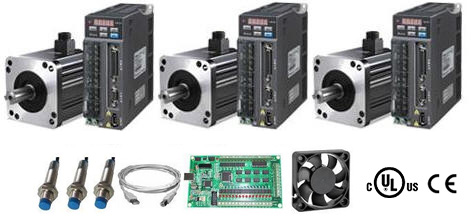

Delta AC Servo 3-Axis CNC Kit
Power: 1000W per axis
Motor: Brushless 3-phase 220V 3000 RPM
Encoder: 17-bit high-resolution (160,000 p/rev)
Driver: Delta AC 220V
Position / Speed / Torque control modes
Input: Line driver & Open-collector
Electronic gear ratio configurable
Includes: Motor x3, Driver x3, Encoder cable 5m x3, Power cable 5m x3, Signal connector x3
Motors and drivers tuned and configured to customer requirements
Compatible: Mach3/4, Masso, PLC, USB controllers
Plug-and-play cables

Affordable CNC breakout borad & USB controller 4 axis multi I/O with ability to work under Mach3/4.4 axis Breakout board Built in DB25 female connector External Enable Pin (EN)
Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17 .
Or Output 1, 14, 16, 17 Input pins 10, 11, 12, 13, 15 Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15.
Common terminal to pins 2- 9, ground/+5V DC
Power supply +5V DC
Package Includes:
1 x Breakout Board C10
1 x UC100 USB Controller
1 x USB Cable

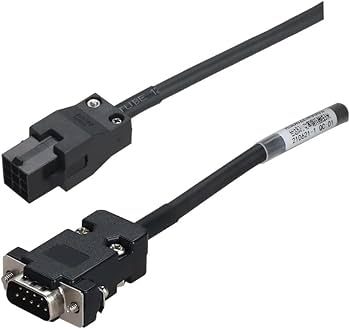

Encoder Cable Set for Delta AC Servo Motors 1000W | Length: 5 meters per axis | Quantity: 3 cables (one per axis) | Plug-and-play design | Compatible with Delta AC Servo driver encoder port for 1000W motors | Add-on for 3-axis servo kits

Encoder Cable Set for Delta AC Servo Motors 200W / 400W / 750W | Length: 5 meters per axis | Quantity: 3 cables (one per axis) | Plug-and-play design | Compatible with Delta AC Servo driver encoder port | Add-on for 3-axis servo kits

Inductive Proximity Limit Switch Set for 3-Axis CNC Kit | Type: Inductive NPN Normally Open (NO) | Quantity: 3 sensors (home and limit for each axis) | Capacitive and Mechanical sensors available as optional alternative | Add-on for Delta AC Servo 3-axis kits | Compatible with USB controller and DB25 breakout board

Call for current pricing ($1,250–$1,900 range) | Masso G3 Standalone Full Mill/Router CNC Controller | A standalone full CNC controller — no PC required, fully integrated hardware and software specially designed to run CNC machines independently | No drivers or motion cards to install — wire to motor drives, enter calibration values, start machining | Built-in Wi-Fi — transfer G-code files and monitor machine/job status wirelessly | 4x faster than Generation 2 controllers | 4 x USB ports: keyboard, mouse, touchscreen, pen drive — no USB hub needed | Inputs: 24 isolated inputs | Outputs: 18 outputs | Analog: 2 x analog (12-bit) inputs | Motion: Step & Direction for stepper/servo drives | Spindle: direct spindle control 0-10V, CW, CCW, PWM | MPG handwheel dial support | Warranty & Technical Support: directly by Masso (see docs.masso.com.au) | Note: Price range $1,250–$1,900 depending on configuration — call for quote

USB 4-Axis CNC Motion Controller with USB Cable | 4-axis motion control | Multiple inputs and outputs | 0–10V VFD spindle control | Compatible with Mach3/4, Masso and other CNC software | Includes configuration XML file for Mach3 | Add-on for Delta AC Servo 3-axis kits | Replaces DB25 LPT parallel interface

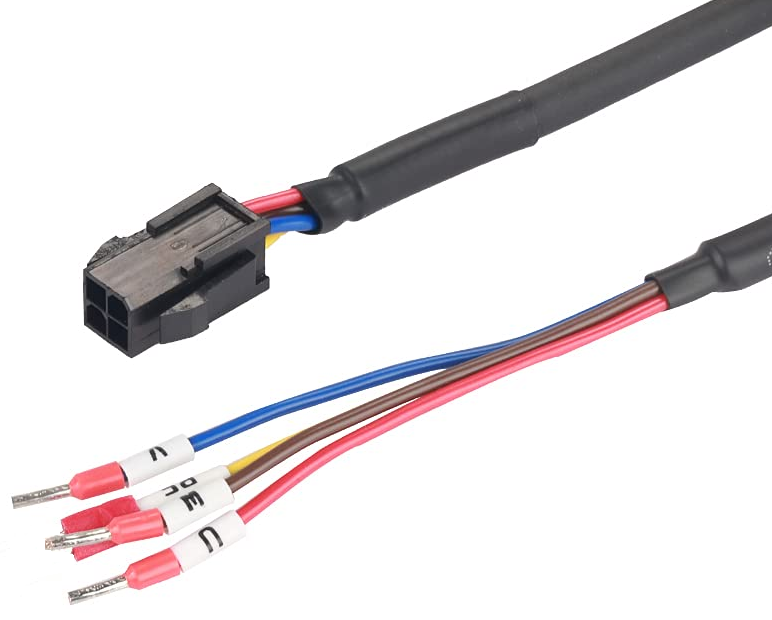

Power Cable Set for Delta AC Servo Motors 200W / 400W / 750W | Length: 5 meters per axis | Quantity: 3 cables (one per axis) | Plug-and-play design | Compatible with Delta AC Servo driver motor power port | Add-on for 3-axis servo kits

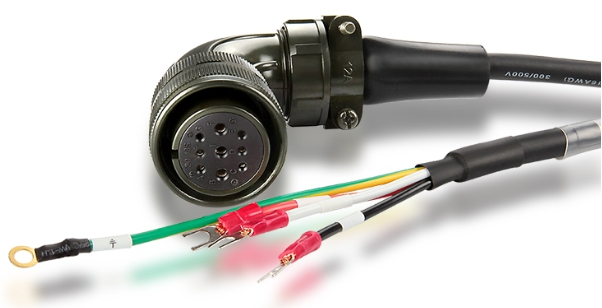

Power Cable Set for Delta AC Servo Motors 1000W | Length: 5 meters per axis | Quantity: 3 cables (one per axis) | Plug-and-play design | Compatible with Delta AC Servo driver motor power port for 1000W motors | Add-on for 3-axis servo kits
