CNC Controllers

Affordable CNC breakout borad & USB controller 4 axis multi I/O with ability to work under Mach3/4.4 axis Breakout board Built in DB25 female connector External Enable Pin (EN)
Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17 .
Or Output 1, 14, 16, 17 Input pins 10, 11, 12, 13, 15 Or 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13, 15.
Common terminal to pins 2- 9, ground/+5V DC
Power supply +5V DC
Package Includes:
1 x Breakout Board C10
1 x UC100 USB Controller
1 x USB Cable

OUT OF STOCK | C11GD Breakout Board + ESS Ethernet Smooth Stepper — 4-axis Multi I/O Mach3/4 | IEEE 1284 standard compatible | Pull-up or Pull-down selection for inputs via jumpers | Buffered inputs and outputs — delivers +5VDC at 24mA from +3.3 or +5VDC parallel port signal | Microcontroller-based SCHP with complex algorithm for sampling/analyzing SCHP signal | Built-in variable speed control: opto-isolated adjustable analog 0-10VDC (converted from PWM) for most VFD | 3 x Electromechanical relays NO/NC — AC or DC compatible | Status LEDs on all I/O | Output pins: 1,2,3,4,5,6,7,8,9,14,16,17 | Input pins: 10,11,12,13,15 | Common terminal pins 2-9: ground or +5VDC selectable | External Enable Pin (EN) | Package: 1x Controller Board C11GD, 1x ESS Controller, 1x IDC 25p Flat cable

OUT OF STOCK | C25XP Breakout Board + ESS Ethernet Smooth Stepper — 6-axis Multi I/O Expandable Mach3/4 | Designed for ESS & ETHER-MACH motion controller | Built-in PWM-based speed control | 2 x Electromechanical relays NO/NC for spindle control | Monitors: E-Stop, Safety Charge Pump | Microcontroller-based SCHP | Opto-isolated inputs: 5-24VDC | Power: +12-24VDC isolated for spindle control, +5VDC for TTL | Status LEDs on all I/O | Open Collector Outputs: pins 1,14,16,17 on Port 2 | Screw-on wire connections | ENABLE output tied to LPT3 for relay/breakout enable/disable | DIN Rail mountable | Package: 1x Breakout Board C25XP, 1x ESS Controller (C25XP Smooth Stepper integrated board)

-Designed for ESS & ETHER-MACH motion controller.
-Built-in PWM-Based Speed Control.
-Built-in 2 Electro mechanical  NO/NC Relaysfor spindle control.
-System monitors E-Stop, Safety Charge Pump, VFD and Driver Fault.
Discrete Inputs and Outputs can be using with +5vdc TTL logic or 10-30vdc Logic.
-Electro mechanical Relay with NO/NC for general purpose.
-Port_2 16 or 17, jumper selectable
-Micro controller based SCHP.
-Opto isolated inputs.
-Power range +10 ~ +30 VDC
-Status LEDs on all I/O DIN Rail mountable.
-Package Includes
1 x Breakout Board
1 x ESS Controller
2 x Flat cable

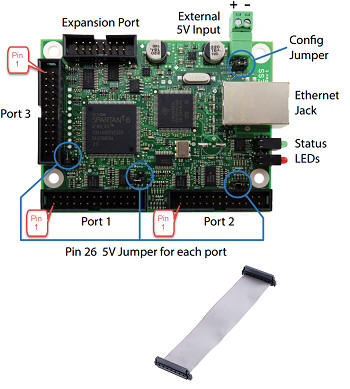

-ESS is a High-performance Ethernet SmoothStepper, 6 axis external motion controller for Mach3 and Mach4.
-Conforms with Parallel Port standard, it integrates seamlessly with most devices with Parallel Port driver of Mach3/4 interfaces.
-Accepts high-level commands from Mach3/4 and produces Step & Direction signals compatible with nearly all step & direction motor drivers.
-Conforms with quadrature mode for high-end motor drivers (not common).
-ESS is a dedicated hardware device, it is capable of producing pulses at very high frequencies and with extremely low jitter compared to the Parallel Port driver and microcontroller-based solutions.
ESS is able to run on any flavor of Windows, both 32-bit and 64-bit. Mach will run under 32-bit or 64-bit, but an external controller such as the Smooth Stepper is needed for 64-bit editions.
-ESS requires a Plug-in for Mach3/4
-Package Includes
1 x ESS Controller
1 x IDC 25 flat cable

Call for current pricing ($1,250–$1,900 range) | Masso G3 Standalone Full Mill/Router CNC Controller | A standalone full CNC controller — no PC required, fully integrated hardware and software specially designed to run CNC machines independently | No drivers or motion cards to install — wire to motor drives, enter calibration values, start machining | Built-in Wi-Fi — transfer G-code files and monitor machine/job status wirelessly | 4x faster than Generation 2 controllers | 4 x USB ports: keyboard, mouse, touchscreen, pen drive — no USB hub needed | Inputs: 24 isolated inputs | Outputs: 18 outputs | Analog: 2 x analog (12-bit) inputs | Motion: Step & Direction for stepper/servo drives | Spindle: direct spindle control 0-10V, CW, CCW, PWM | MPG handwheel dial support | Warranty & Technical Support: directly by Masso (see docs.masso.com.au) | Note: Price range $1,250–$1,900 depending on configuration — call for quote

Call for availability | 6-Axis Ethernet/USB CNC Controller 500kHz for Mach3 | Model: MTET381 | Interface: Ethernet TCP/IP or USB Full-speed | 100M Ethernet with built-in network transformer isolation, supports long-distance and wireless router | Axes: 6-axis, 500kHz pulsing engine, servo/stepper, configurable as Step/Dir or Spindle | Slave axis support: dual X/Y/Z | Home auto-leveling with dual-side home switch | 2 x MPG real-time manual pulse generation ports | Inputs: 18 general-purpose with LED status | Outputs: 7 general-purpose with LED status — CW/CCW/Mist/Flood | Spindle: PWM x1, 0-10V analog x1, 0-5V analog x1 | 2 analog input ports for speed/jog/spindle adjustment | 6 x high-speed opto-couplers dual-channel 10MHz, 27 general opto-couplers for full I/O isolation | Full Mach3 support | Windows XP/7/10 32-bit/64-bit | No USB driver installation required | Package: 1x Ethernet/USB Breakout Board, 1x Ethernet or USB Cable, 1x Controlling POT

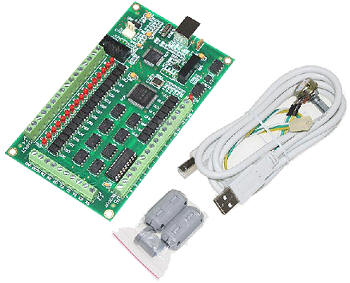

OUT OF STOCK | 3-Axis USB CNC Controller 200kHz for Mach3 | Model: MTUSB3X | Interface: USB or external 5VDC power | Max step-pulse frequency: 200kHz | Motor: servo/stepper | Internal PWM spindle control 0-10V | External spindle control by potentiometer | OS: Windows 2000/XP/Vista/7 | 10 x high-speed opto-couplers 10MHz | 24 general opto-couplers for I/O isolation | 4-axis output | 8 general outputs | 16 general inputs | Package: 1x USB Breakout Board, 1x USB Cable, 1x Controlling POT

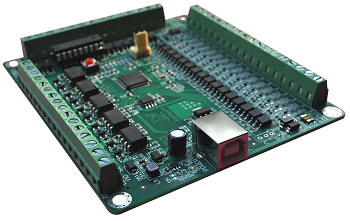

Call for availability | 3-Axis USB CNC Controller 500kHz for Mach3 | Model: MTUSB3XV3 | Interface: USB Full-speed | Axes: 2, 4 & 5-axis, 500kHz pulsing engine, servo/stepper, configurable as Step/Dir or Spindle | Slave axis support: dual X/Y/Z | Home auto-leveling with dual-side home switch | 2 x MPG real-time manual pulse generation ports | Inputs: 16 general-purpose with LED status | Outputs: 7 general-purpose with LED status — CW/CCW/Mist/Flood | Spindle: PWM x1, 0-10V analog x1, 0-5V analog x1 | 2 analog input ports for speed/jog/spindle adjustment | 5 x high-speed opto-couplers dual-channel 10MHz, 25 general opto-couplers for full I/O isolation | Full Mach3 support | Windows XP/7/10 32-bit/64-bit | No USB driver installation required | Package: 1x USB Breakout Board, 1x USB Cable, 1x Controlling POT

USB Motion Controller
Adapter/Converter LPT DB25 Parallel Port
-Motion control on up to 6-axis (X, Y, Z, A, B, C).
-Configurable
maximum stepping frequency, 25kHz 20usec, 50kHz 10usecm,100kHz 5usec pulse length
-12 5Volt 20mA (TTL level)
Buffered outputs with current sink/source capability.
5 input pins with at 5V (TTL level) with Schmidt triggered filtered inputs internally pull-up to 5Volts at 4.7kOhms.
-DB25 LPT port compatible
-Support Mach3/Mach4 most functions TTL,I/O, spindle 0-10V
-Package Includes
1 x UC100
1 x USB Cable

USS SmoothStepper — 6-axis Motion Control Device for Mach3 | Manufacturer: Orbis CNC | Interface: USB (USB connector between SmoothStepper and host computer) | Power: USB or external regulated 5VDC | Accepts commands from Mach3 trajectory planner, produces very high quality pulse for stepper and servo motors | Relieves host computer of most CPU load for Mach3 | Dedicated hardware produces pulse streams up to 80x faster with more precise timing than Mach3 via printer port | Requires Plugin to allow Mach3 to send motion and I/O information to SmoothStepper | Package: 1x USS CNC Motion Controller Smooth Stepper
