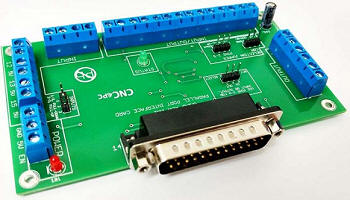

Breakout Board

4-axis breakout board. Compatible with Mach3/4, LinuxCNC. Built-in DB25 female connector.

- External Enable Pin (EN)
- Output pins: 1,2,3,4,5,6,7,8,9,14,16,17 (or 1,14,16,17)
- Input pins: 10,11,12,13,15 (or 2,3,4,5,6,7,8,9,10,11,12,13,15)
- Common terminal to pins 2-9, ground/+5V DC
- Power supply: +5V DC

Package Includes: 1x Breakout Board, 1x DB25 Cable

Note: this is the standalone breakout board only -- distinct from the C10/UC100 combo USB controller kit already in the catalog (code C10-UC100).

4-axis multi-I/O breakout board with analog spindle control and relay outputs. IEEE 1284 standard compatible.

- Pull-up/pull-down selectable inputs, with jumpers for best input configuration
- Buffered inputs/outputs -- delivers solid +5VDC at 24mA without drawing power from the parallel port
- Microcontroller-based SCHP for complex signal sampling/analysis
- Built-in variable speed control: optoisolated 0-10VDC analog output (from PWM), fits most VFDs
- 3x electromechanical relays with NO/NC positions (AC or DC)
- Status LEDs on all I/O connections, driven by independent buffers
- Output pins: 1,2,3,4,5,6,7,8,9,14,16,17
- Input pins: 10,11,12,13,15
- Selectable common terminal (ground or +5VDC) for pins 2-9
- External Enable Pin (EN) to enable/disable all outputs at once

Package Includes: 1x C11GD Control Board, 1x IDC 25p Flat Cable

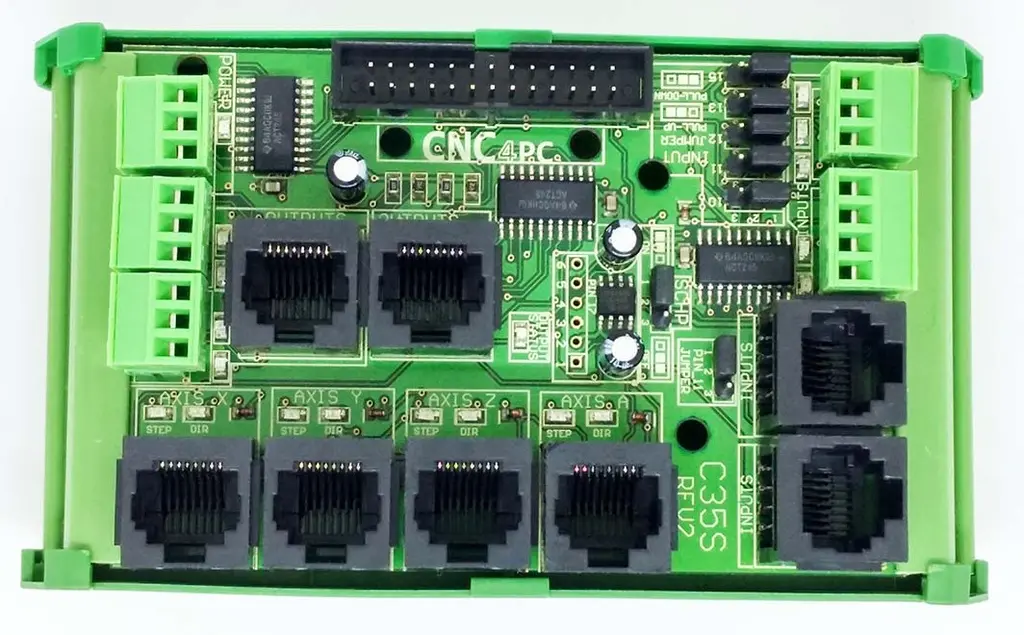

Older-type 4-axis breakout board with RJ45 quick-setup connection. Compatible with Mach3/4, DeskCNC, LinuxCNC. Microcontroller-based SCHP.

- Easy plug & play -- connects to driver step/dir via RJ45 network cable
- Buffered inputs/outputs -- delivers solid +5VDC at 24mA from +3.3V or +5VDC parallel port signal
- Built-in DB25 female connector
- External Enable Pin (EN)
- Output pins: 1,2,3,4,5,6,7,8,9,14,16,17 (or 1,14,16,17)
- Input pins: 10,11,12,13,15
- Power supply: +5V DC

Package Includes: 1x Breakout Board Adapter

Note: Mach4 may require a motion controller to run alongside these boards (per source page).
