Single Axis Controller, Linear Actuator & Rotary Indexer Units

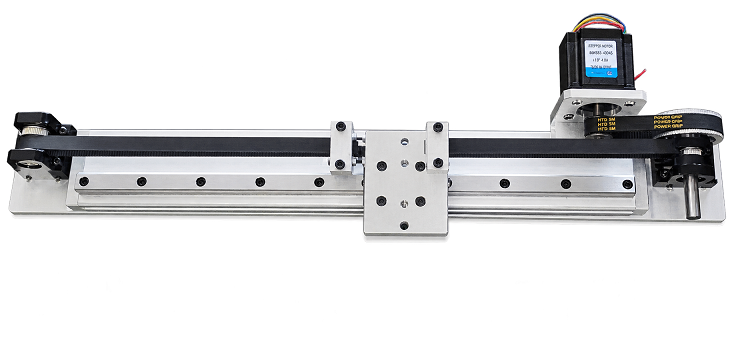

High precision Linear Actuator High speed 15mm width belt & pulley driven, Nema23 Motor Frame, 20mm Rail, moving Horz weight 65 lb Vert 25lb, moving speed up to 1200 IPM

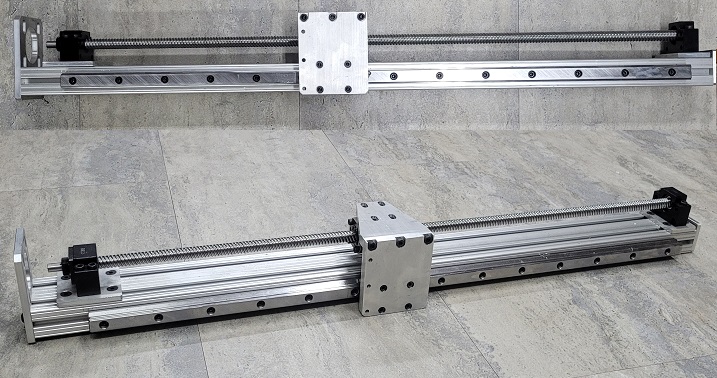

High precision Linear Actuator Fast Ball Screw 16mm Ø 16mm pitch, Nema23 Motor Frame, 20mm Rail, moving Horz weight 75 lb Vert 30lb, moving speed up to 250 IPM

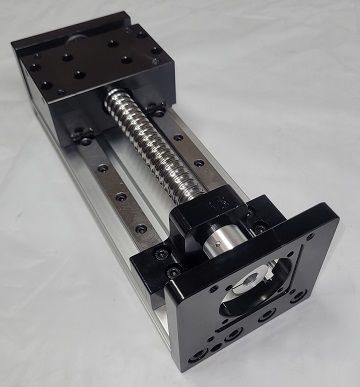

Ball screw 16mm 5mm Pitch
Linear Sqaure Rail
Nema23 motor frame & 1/4" Coupling

Ball screw 16mm 5mm Pitch
Linear Sqaure Rail
Nema23 motor frame & 1/4" Coupling

Ball screw 12mm 4mm Pitch
Linear Round Rail Double
Nema23 motor frame & 1/4" Coupling

Ball screw 12mm 4mm Pitch
Linear Round Rail Double
Nema23 motor frame & 1/4" Coupling

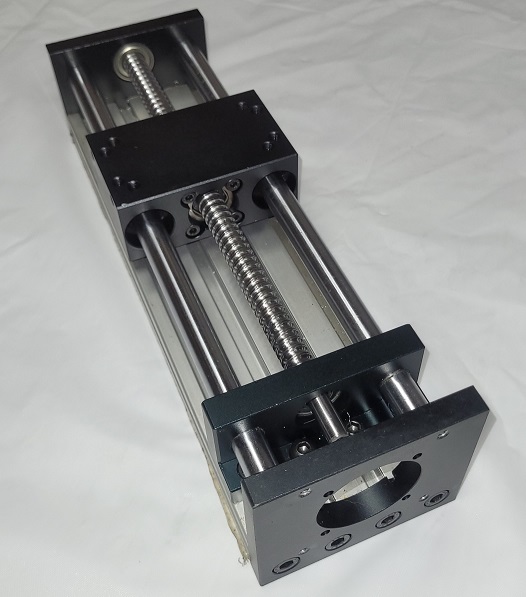

Ball screw 16mm 5mm Pitch
Linear Round Rail Double
Nema23 motor frame & 1/4" Coupling

Ball screw 16mm 10mm Pitch
Linear Round Rail Double
Nema23 motor frame & 1/4" Coupling

Ball screw 16mm 5mm Pitch
Linear Sqaure Rail Double
Nema23 motor frame & 1/4" Coupling

Can be custom built with up to 24" travel, Hiwin 20mm rail, 2 HGH20 Bearings, 16mm Ball Screw, Nema 23 or 34 Motor not included, HGH20 2 Bearings mount on the back on 8020 1545 Gantry with 20mm rail.

Can be custom built with up to 36" travel, Hiwin 20mm rail, 4 HGH20 Bearings, 16mm Ball Screw, Nema 23 or 34 Motor not included, HGH20 4 Bearings mount on the back on 8020 3060 Gantry with 20mm rail.

Hiwin 20mm rail, 4 HGH20 Bearing, 16mm Ball Screw, Nema34 Motor included, 4 Back bearings HGW20 included to mount on 8020 3060 Gantry with 20mm rail.

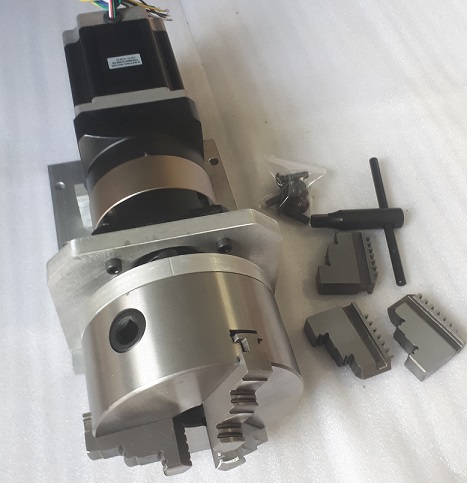

CNC Rotary 4th Axis (Custom made)
Chuck Diameter: 4,5,6,8"
Planetary Gearbox driven ratio 1:1–5:1-7:1-10:1-15:1 or other
Type: Self-centering
Jaws: 2 sets, 2-way holding, 3 pieces each
Full set of accessories included
Reduction Ratio: optional 1:1–5:1-7:1-10:1-15:1
Motor: Nema34 Stepper Motor or Servo Motor 80mm (not Included)
Structure: Aluminum
Applications: CNC Router, Mill, Lathe and Plasma & Other Machines use

New out of the box has some scratches

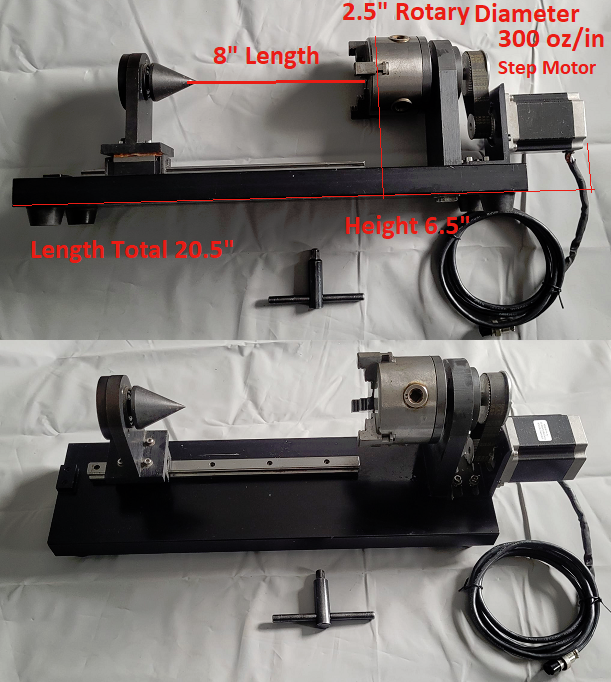

CNC Rotary 4th Axis Laser Engraving
Chuck Diameter: 2.5"
Travel Length : 8"
Type: Self-centering
Jaws: 2 sets, 2-way holding, 3 pieces each
Motor: Nema23 included
Structure: Aluminum
Applications: CNC Router, Laser,Mill, Lathe & Plasma Machines

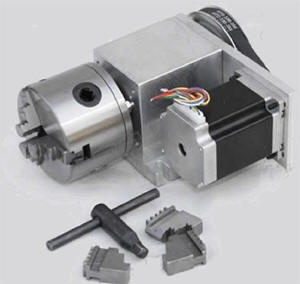

CNC Rotary 4th Axis
Chuck Diameter: 3 inch
Type: Self-centering
Jaws: 2 sets, 2-way holding, 3 pieces each
Full set of accessories included
Reduction Ratio: optional 1:1, 2:1, 3:1, 4:1 or 5:1
Motor: Nema23 or Nema34 Stepper Motor
Structure: Aluminum
Applications: CNC Router, Mill, Lathe and Plasma Machines

CNC Rotary 4th Axis
Chuck Diameter: 4 inch
Type: Self-centering
Jaws: 2 sets, 2-way holding, 3 pieces each
Full set of accessories included
Reduction Ratio: optional 1:1, 2:1, 3:1, 4:1 or 5:1
Motor: Nema23 or Nema34 Stepper Motor
Structure: Aluminum
Applications: CNC Router, Mill, Lathe and Plasma Machines

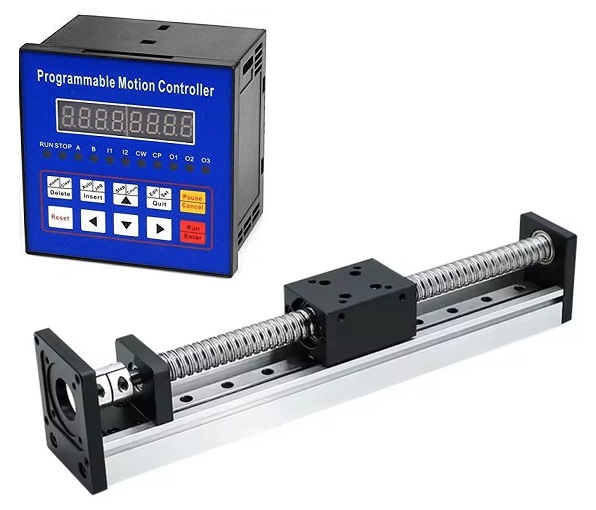

One Single Axis Standalone CNC Controller | For Rotary, Linear Motion Actuator or other single-axis control | Max output frequency: 40kHz | Output frequency resolution: 1Hz | Programmable max rows: 99 | I/O: 9 total — 6 inputs, 3 outputs (optically isolated) | Operating modes: Auto-run, Manual operation, Program edit, Parameter setting | Display: 8-digit display — manual/auto status, run/stop status, steps/counts/procedures, program edit, parameter display, I/O status, pulse and direction | Auto-run: edit, start/stop automatically, run via panel buttons and terminal operations | Manual operation: position adjustments, jog speed or steps settable | Parameter settings: starting frequency, acceleration/deceleration curve, reverse clearance, manual run length, manual speed, return-to-zero speed, interrupt jump-line | Editing: insert, delete, modify program | Return to Zero: positive and negative direction, auto return to zero | External operation: interrupt via parameter setting and switch at terminals A and B | Power: 24VDC | Applications: rotary indexer, heavy duty linear actuator, light weight linear actuator
